How Do PI Rods Contribute to Accuracy in Nanotechnology and Photonics
2026-01-15

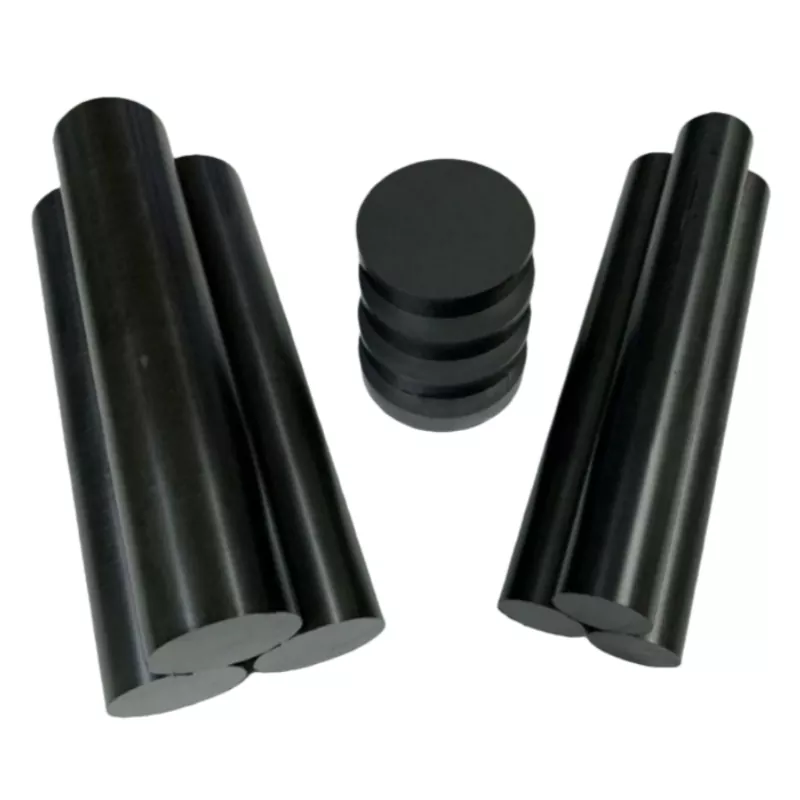

In the demanding fields of nanotechnology and photonics, where measurements are made at the atomic scale and light must be controlled with extreme precision, the stability of mechanical components is paramount. This is where PI Rods, or Precision-Invar rods, become indispensable. Engineered for minimal thermal expansion, these components are foundational to systems where even micron-level drift can compromise an entire experiment or manufacturing process. At Ideal Plastic Technology, we specialize in manufacturing high-performance PI Rods that meet the rigorous standards of these advanced industries, ensuring unparalleled accuracy and reliability.
The core value of PI Rods lies in their material properties and design. They are typically constructed from composites like carbon fiber reinforced polymers or specialized alloys that exhibit near-zero coefficient of thermal expansion (CTE). This characteristic is critical for maintaining dimensional stability despite fluctuations in ambient temperature.
Key Contributions of PI Rods to Accuracy:
-
Eliminating Thermal Drift: The primary enemy of precision is thermal expansion. PI Rods virtually eliminate this, ensuring that the distance between optical elements or probe tips remains constant.
-
Ensuring Structural Rigidity: Their high stiffness-to-weight ratio prevents bending and vibrations, which can blur imaging or disrupt delicate optical alignments.
-
Providing Long-Term Stability: Materials used in PI Rods are resistant to creep and environmental degradation, guaranteeing consistent performance over time.
Comparative Stability: PI Rods vs. Standard Materials
| Material | Typical Coefficient of Thermal Expansion (CTE) | Suitability for High-Precision Applications |
|---|---|---|
| PI Rods (e.g., Carbon Fiber Composite) | 0.0 to 0.5 x 10⁻⁶/K | Excellent. Ideal for nanotechnology stages, photonic alignment, and metrology frames. |
| Aluminum | ~23 x 10⁻⁶/K | Poor. Significant thermal drift makes it unsuitable for nanometer-scale stability. |
| Stainless Steel | ~17 x 10⁻⁶/K | Low. Often insufficient for the most critical photonics and nanotech applications. |
PI Rods FAQ
What makes PI Rods different from standard steel or aluminum rods?
The fundamental difference is the controlled, near-zero Coefficient of Thermal Expansion (CTE). Standard metals expand and contract noticeably with temperature changes, causing positional drift. PI Rods are engineered from advanced composites or alloys to resist these changes, maintaining dimensional integrity for critical accuracy.
Can PI Rods be customized for specific photonics equipment?
Yes, absolutely. At Ideal Plastic Technology, a key service is customization. PI Rods can be tailored in diameter, length, threading, and end-fixture design to integrate seamlessly into specific optical mounts, microscope frames, or semiconductor fabrication tools, ensuring a perfect fit for your application.
How do I ensure the longevity and performance of my PI Rods?
Proper handling is straightforward but crucial. Avoid dropping or striking the rods to prevent internal fractures. Clean them with appropriate solvents that won't degrade the composite matrix. For optimal performance, install them in a controlled environment when possible and use compatible, low-stress mounting hardware provided or recommended by your supplier, like Ideal Plastic Technology.
To achieve groundbreaking results in nanotechnology and photonics, every component in your system must be optimized for precision. Ideal Plastic Technology provides the foundational stability you require with our high-performance PI Rods. Our expertise in advanced materials ensures you receive components that elevate the accuracy and reliability of your most sensitive applications. Contact us today to discuss your specific requirements and discover how our engineered solutions can contribute to your success.
