Rubber Gasket Types and Sealing Solutions
2025-09-08
When it comes to industrial sealing, selecting the right Rubber Gasket is critical for ensuring system integrity, safety, and longevity. This article provides a detailed overview of various rubber gasket types, their applications, material properties, and key technical parameters. We will explore how Hansheng's high-performance sealing solutions meet diverse industrial demands through superior engineering and quality manufacturing.
Understanding Rubber Gaskets
A Rubber Gasket is a sealing material placed between two or more surfaces to prevent leakage under compression. These components are essential in industries such as automotive, aerospace, plumbing, oil and gas, and manufacturing. Gaskets must resist environmental factors, including temperature extremes, chemicals, pressure, and mechanical stress.
Common Rubber Gasket Materials and Their Properties
Hansheng produces gaskets from various elastomers, each suited for specific conditions. Below is a summary of popular materials:
| Material Type | Temperature Range | Key Properties | Common Applications |
|---|---|---|---|
| Nitrile (NBR) | -40°C to 120°C | Excellent oil and fuel resistance | Fuel systems, oil pipelines, automotive engines |
| EPDM | -50°C to 150°C | Good weather, ozone, and steam resistance | HVAC systems, plumbing, outdoor seals |
| Silicone (VMQ) | -60°C to 230°C | High heat resistance, flexible, FDA compliant | Food processing, medical devices, aerospace |
| Neoprene (CR) | -50°C to 120°C | Moderate resistance to oils, chemicals, and flames | Electrical enclosures, refrigeration, industrial machinery |
| Fluorocarbon (FKM) | -20°C to 200°C | Exceptional chemical and heat resistance | Chemical processing, valves, fuel handling systems |
| Natural Rubber (NR) | -50°C to 80°C | Good elasticity and abrasion resistance | General purpose, low-pressure seals, consumer goods |
Key Parameters for Selecting the Right Rubber Gasket
Choosing the correct gasket requires understanding several performance parameters:
-
Chemical Compatibility: The gasket material must resist degradation from fluids or gases it contacts.
-
Temperature Resistance: The material should perform within the application’s temperature range.
-
Pressure Rating: Gaskets must withstand system pressure without extruding or failing.
-
Compression Set: This measures the material’s ability to return to its original thickness after compression.
-
Hardness (Shore A): Indicates material stiffness, affecting sealability and load-bearing capacity.
-
Environmental Factors: Consider exposure to UV light, ozone, or moisture.
Hansheng’s Rubber Gasket Product Line and Specifications
Hansheng offers a wide range of standard and custom Rubber Gasket solutions. Below are detailed specifications for some of our most popular products:
1. Nitrile Rubber Gaskets
-
Hardness (Shore A): 50 - 90
-
Tensile Strength: 10 - 25 MPa
-
Elongation at Break: 300% - 600%
-
Color: Typically black
-
Standards: ASTM D2000, ISO 3601
2. EPDM Gaskets
-
Hardness (Shore A): 40 - 90
-
Tensile Strength: 7 - 21 MPa
-
Elongation at Break: 200% - 600%
-
Color: Black or custom
-
Standards: ASTM D2000, SAE J200

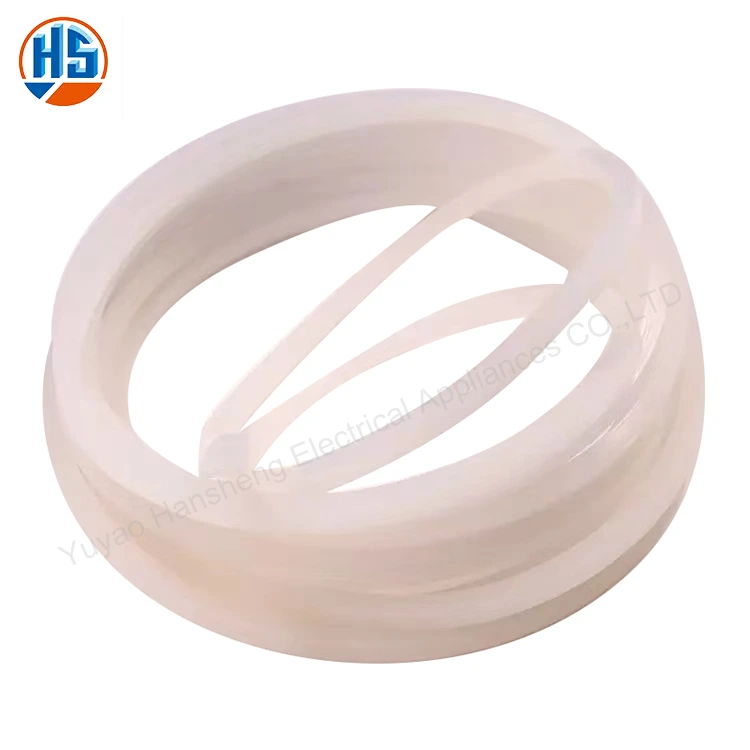

3. Silicone Gaskets
-
Hardness (Shore A): 20 - 80
-
Tensile Strength: 4 - 10 MPa
-
Elongation at Break: 100% - 700%
-
Color: Various (including FDA-approved colors)
-
Standards: FDA CFR 21.177.2600, USP Class VI
4. FKM (Viton®) Gaskets
-
Hardness (Shore A): 65 - 90
-
Tensile Strength: 7 - 20 MPa
-
Elongation at Break: 100% - 300%
-
Color: Usually black, brown
-
Standards: ASTM D2000, AMS 7276
For custom requirements, we can adjust compound formulations, dimensions, and tolerances to meet specific OEM or MRO needs.
Applications and Industry Solutions
Hansheng Rubber Gasket products are trusted in numerous sectors:
-
Automotive: Engine gaskets, fuel system seals, and vibration dampers.
-
Industrial Machinery: Hydraulic seals, pump gaskets, and flange seals.
-
Plumbing: Pipe gaskets, faucet washers, and connection seals.
-
Aerospace: Cabin pressure seals, fuel tank gaskets, and thermal barriers.
-
Food & Beverage: Sanitary seals, conveyor belt guides, and processing equipment gaskets.
Why Choose Hansheng?
With decades of experience, Hansheng stands out through:
-
Quality Assurance: Every batch undergoes rigorous testing for dimensions, physical properties, and performance.
-
Customization: We offer tailored solutions for unique applications.
-
Technical Expertise: Our engineering team provides support from material selection to design optimization.
-
Global Standards: Compliance with international standards ensures reliability and safety.
Conclusion
Selecting the appropriate Rubber Gasket is vital for operational efficiency and safety. Hansheng provides a comprehensive range of high-quality, durable sealing solutions designed to meet the toughest industrial challenges. Our commitment to excellence ensures that you receive a product that perfectly matches your technical and environmental requirements.
We are confident that our expertise and product quality can meet your sealing needs. For more information, technical datasheets, or to discuss a custom solution, please reach out to our team. We look forward to helping you achieve leak-free, reliable operations.
