EVA Interlayer Film
Product positioning1- Terms of Quotation: EXW factory price (We also deal with CIF, CFR, FOB)2- Terms of Payment: 100% payment shall be paid off by T/T before shipment.3. Delivery time: 10 days after receive the down payment.1. EVA film can be used in indoor and outdoor decoration.A wide range of a......
Send Inquiry
Product Description
Product positioning
1- Terms of Quotation: EXW factory price (We also deal with CIF, CFR, FOB)
2- Terms of Payment:
100% payment shall be paid off by T/T before shipment.
3. Delivery time: 10 days after receive the down payment.

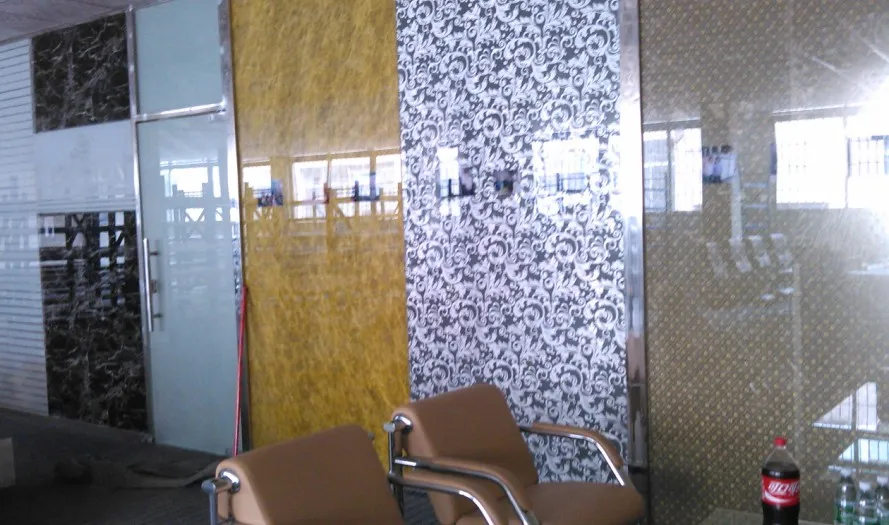

1. EVA film can be used in indoor and outdoor decoration.
A wide range of applications: EVA film is widely used in plastic folder security glass, safety laminated glass, safety glass, curved laminated glass, colour changeable glass, conductive glass and some special glass production area.
2. PA film is applicable to the construction level (outdoor decoration).
PA film simplifies the production process of laminated glass, it can replaces PVB film.
Widely used for: Architectural Glass, Canopy glass, decorative glass balcony, car bullet-proof glass, water race, the underwater world etc.
Technical data:
EVA technical data:
Features EVA film
Adhesion conditions Adhesion Temperature 120
Melting point degree 70
Light Transmittance 90.1
visible light reflection rate 8.5
Turbidity (%) 0.6
UV filtering rate (%) ≥ 98
Solar energy total transmission rate(%) 75.5
Solar light reflction rate(%) 7.2
light block rate(%) 0.87
Product specification
Item Thickness(mm) Width(M) Length(M)
EVA 0.15 1.65, 1.85, 2.0, 2.2 200
0.25 1.65, 1.85, 2.0, 2.2 150
0.38 1.65, 1.85, 2.0, 2.2 100
0.76 1.65, 1.85, 2.0, 2.2 50
PA 0.25 2 150
0.38 2 100
0.5 2 50
0.76 2 50
Remarks: Width and thickness is ordered by customers, the max width is 2.2M.
Product packing and storage and transportation
1. After opening the films, pls use it in time.
2. The process of transport and storage, the films should avoid light, heat radiation directly; At the same time, we should prevent rain, heavy weight and stamp injury collision with hard objects; But also preventing contamination, fire, chemical organic solvents.
3. Products are stored in ventilation drying places; Temperature does not exceed 35 degree, the humidity does not exceed 60%; In summer, the films should not be stored more than three months, In winter storage period should not be more than six months; After openning, the remaining film should be used Flexible sealed, and used up as soon as possible.
1- Terms of Quotation: EXW factory price (We also deal with CIF, CFR, FOB)
2- Terms of Payment:
100% payment shall be paid off by T/T before shipment.
3. Delivery time: 10 days after receive the down payment.
1. EVA film can be used in indoor and outdoor decoration.
A wide range of applications: EVA film is widely used in plastic folder security glass, safety laminated glass, safety glass, curved laminated glass, colour changeable glass, conductive glass and some special glass production area.
2. PA film is applicable to the construction level (outdoor decoration).
PA film simplifies the production process of laminated glass, it can replaces PVB film.
Widely used for: Architectural Glass, Canopy glass, decorative glass balcony, car bullet-proof glass, water race, the underwater world etc.
Technical data:
EVA technical data:
Features EVA film
Adhesion conditions Adhesion Temperature 120
Melting point degree 70
Light Transmittance 90.1
visible light reflection rate 8.5
Turbidity (%) 0.6
UV filtering rate (%) ≥ 98
Solar energy total transmission rate(%) 75.5
Solar light reflction rate(%) 7.2
light block rate(%) 0.87
Product specification
Item Thickness(mm) Width(M) Length(M)
EVA 0.15 1.65, 1.85, 2.0, 2.2 200
0.25 1.65, 1.85, 2.0, 2.2 150
0.38 1.65, 1.85, 2.0, 2.2 100
0.76 1.65, 1.85, 2.0, 2.2 50
PA 0.25 2 150
0.38 2 100
0.5 2 50
0.76 2 50
Remarks: Width and thickness is ordered by customers, the max width is 2.2M.
Product packing and storage and transportation
1. After opening the films, pls use it in time.
2. The process of transport and storage, the films should avoid light, heat radiation directly; At the same time, we should prevent rain, heavy weight and stamp injury collision with hard objects; But also preventing contamination, fire, chemical organic solvents.
3. Products are stored in ventilation drying places; Temperature does not exceed 35 degree, the humidity does not exceed 60%; In summer, the films should not be stored more than three months, In winter storage period should not be more than six months; After openning, the remaining film should be used Flexible sealed, and used up as soon as possible.
