Engineering Grade Injection PBT GF30 Factory
Product modelMDP30LW PBT Product descriptionPBT+30GF,low warpagePerformance characteristics30%GF;low warpagePhysical propertyDensityg/cm3ISO 1183 1.46Filler content%ISO 1172 30GFMold shrinkage%ISO 294Parallel0.16Vertical0.78Mechanical propertyTensile strengthMPaISO 527I type sample50mm/min130Elonga......
Send Inquiry
Product Description
Product model
MDP30LW PBT
Product description
PBT+30GF,low warpage
Performance characteristics
30%GF;
low warpage
Physical property
Mechanical property
Thermal property
Flammability
Note:The above data are typical , as reference only
Applications
Motor base;
Wiper motor cover plate
1-Are you trading company or manufacturer?
We are manufacturer.
2-Can we get the free sample?
Yes, we can offer 1kg material as free sample, but the freight need be paid by yourself.
3-What's the material color?
The normal color is natural and black for each model, if you need other colors, we can custom it for you.

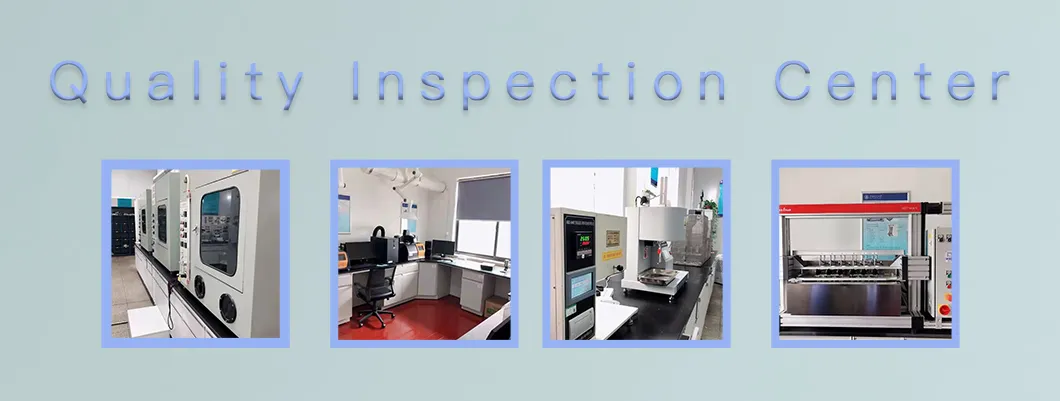

4-How does your factory control the quality?
Quality is the Priority, we always pay great important to quality from beginning to end, we have professional QC for item quality from spare parts to finished goods.
5-What's the delivery time?
The small order will be send out within 7-10 days after we get your payment.
The big order will be send out within 15 days after we get your deposit. The balance need be paid before it send out.
MDP30LW PBT
Product description
PBT+30GF,low warpage
Performance characteristics
30%GF;
low warpage
Physical property
| Density | g/cm3 | ISO 1183 | 1.46 | |
| Filler content | % | ISO 1172 | 30GF | |
Mold shrinkage | % | ISO 294 | Parallel | 0.16 |
| Vertical | 0.78 |
| Tensile strength | MPa | ISO 527 | I type sample 50mm/min | 130 |
| Elongation at break | % | ISO 527 | I type sample 50mm/min Gauge length 50mm | 3 |
| Flexural strength | MPa | ISO 178 | 23ºC 10mm/min | 195 |
| Flexural modulus | MPa | ISO 178 | 23ºC 10mm/min | 8300 |
| Izod impact strength(notched) | KJ/m2 | ISO 180 | 23ºC | 9 |
| Charpy impact strength(unnotched) | KJ/m2 | ISO 179 | 50 | 60 |
| Melting point | ºC | ISO 11357-1 | 223 | |
| HDT | ºC | ISO 75 | 0.45MPA | 210 |
| 1.8MPA | 175 |
| UL Flammability | Class | UL-94 | HB |
Applications
Motor base;
Wiper motor cover plate
1-Are you trading company or manufacturer?
We are manufacturer.
2-Can we get the free sample?
Yes, we can offer 1kg material as free sample, but the freight need be paid by yourself.
3-What's the material color?
The normal color is natural and black for each model, if you need other colors, we can custom it for you.
4-How does your factory control the quality?
Quality is the Priority, we always pay great important to quality from beginning to end, we have professional QC for item quality from spare parts to finished goods.
5-What's the delivery time?
The small order will be send out within 7-10 days after we get your payment.
The big order will be send out within 15 days after we get your deposit. The balance need be paid before it send out.
