Product Description

Polyvinyl Chloride suspension resin virgin Pvc resin sg5
Plastic pipe grade PVC Resin polyvinyl chloride resin SG5 K67

Suspension grade PVC resin

PVC resin

PVC Resin SG5, K-Value 66-68,

PVC Resin SG8

For PVC Compound, PVC Shoes, Pipe etc

Product name: PVC Resin

Molecular Formula: (C2H3Cl)n

CAS No: 9002-86-2

Einecs No:208-750-2

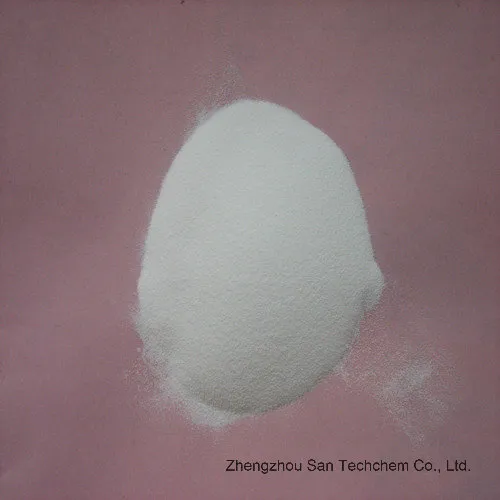

Apprance: White, indefinite form powder

Packing: in 25kg pp bag. 17 Metric Ton

Specification:

Type	SG1	SG2	SG3	SG4	SG5	SG6	SG7
Viscosity Number,ml/g	156 144	143 136	135 127	126 119	118 107	106 96	95 87
K Value	76-75	74-73	72-71	70-69	68-66	65-63	62-60
The Number of inpurity particle,piece	30	30	30	30	30	30	40
Contect of Volatile Matter	0.4	0.4	0.4	0.4	0.4	0.4	0.4
Apperent Density,g/ml	0.42	0.42	0.42	0.42	0.45	0.45	0.45

The Property of PVC Resin:

Polyvinyl chloride(PVC resin) is high molecular compounds polymerized by vinyl chloride monomer (VCM) with structural element as [CH2-CHCL]n,degree of polymerization usually as 590-1500.According to residual content of vinyl chloride menomerl in polyvinyl chloride resin , is can be divided into:commercial grade, food hygiene grade and medical application grade.In appearance, polyvinyl chloride resin is white powder.

The application and use of PVC Resin:

This company has SG3-SG8 type polyvinyl chloride products,and polyvinyl chloride resin is widely used in processing and production of polyvinyl chloride boardy products,soft products,paint and adhesive agents.

Division according to application:

1. Building materials:such as tubing,panel and section bars.
2. Paking materials.
3. Electronic materials:such as electric wires,cables,adhesive tapes and bolts.
4. Furniture and decorating materials and so on.
5. Others:such as automotive materials and medical appliances.

The Package,transported and storage of PVC resin

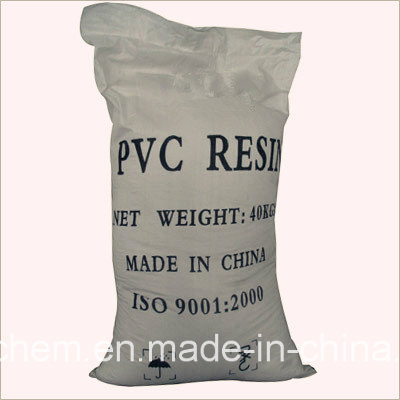

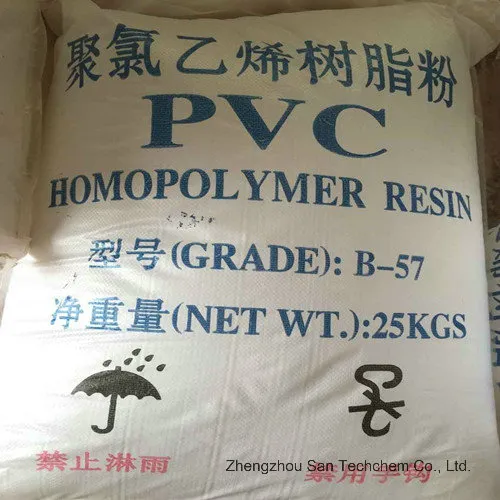

Package:packed with woven bag with a net weight of 25Kgs(±0.20Kg)
Transportation:transported with motor vehicle,train or ship.

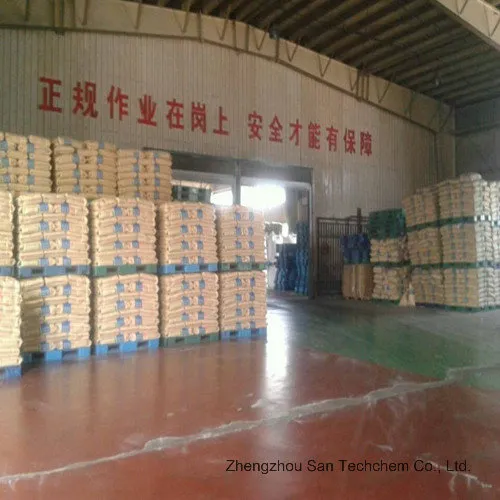

Storage:stored in a normal temperature and dry warehouse.

The Quality standard of PVC resin

The product meets GB/T 5761-2006 standard with its physical and chemical properties meeting requirement in table below:

1.The user can choose any one from vifscosity number, K value ,index of average polymerizapion degree.
2.The user can confer with the manufacture if they have other index ,requirement ,on thermal stability.

The Product quality inspection sheet of PVC resin

Type	SG3	SG5
Viscosity,ml/g(or K value)	135-127(72-71)1350-1250	118-107(68-66)1100-1000
Number of Impurity Partical max.	30	30
Volatiles Content%, max.	0.40	0.40
Appearing Density, g/ml, min.	0.42	0.42
Number of Grain/400cm2 max.	40	40
Plasticizer Absorbency Value of 100g Resin	25	19
Whiteness %, min	74	74
Water Extractant Solution Conductivity, s/m max.	0.005	0.005
Residule Chlore Thylene Content, mg/kg, max.	5	5
Ethylidence Chloride mg/kg max.	150	150

Use: is widely used in the production of water pipe, chemical pipe, plastic windows and doors, packing film, plastic carpet, plastic ceiling, sanitary fitting, plastic wallpaper etc.
Polyvinyl Chloride Suspension Resin Virgin PVC Resin Sg5
