Transparent Nylon Instead of TPU, TPU
1. General InformationGT26 is an amorphous nylon (polyamide) resin which has superior transparency, good barrier properties to gases, water, solvents and essential oils, high light transmission, ultrahigh rigidity, easily colorable, food contact acceptable, excellent molding processability and dimen......
Send Inquiry
Product Description
1. General Information

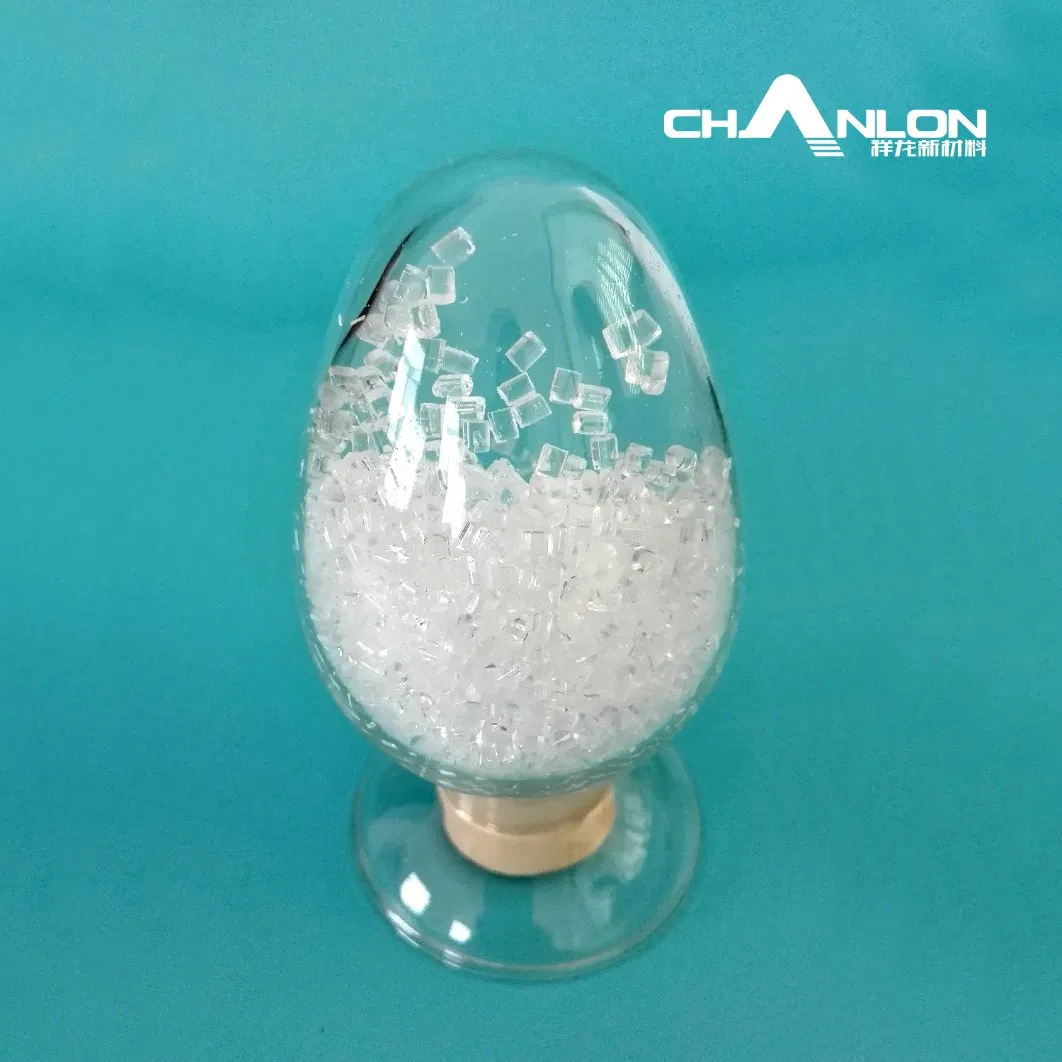

GT26 is an amorphous nylon (polyamide) resin which has superior transparency, good barrier properties to gases, water, solvents and essential oils, high light transmission, ultrahigh rigidity, easily colorable, food contact acceptable, excellent molding processability and dimensional stability, together with high temperature structural properties, all of these performance make it suitable for consideration in a number of applications.
2. Typical Characteristics
GT26 barrier resin is characterized by excellent barrier to gas O2, CO2 and moisture. Furthermore, GT26 is unique in that its gas barrier improves with increasing relative humidity. The high barrier performance of GT26 also reflected in the excellent resistance to many types of solvent systems, such as aliphatic, aromatic hydrocarbons, dilute alkalis, higher molecular weight alcohols, and low concentrations of lower molecular weight alcohols. With its high degree of stiffness, excellent barrier to gases and moisture, solvent resistance, high temperature resistance and excellent gloss and clarity, GT26 can be blow-molded to rigid "glass like" container.
3. Application
4. Physical Properities
GT26 is an amorphous nylon (polyamide) resin which has superior transparency, good barrier properties to gases, water, solvents and essential oils, high light transmission, ultrahigh rigidity, easily colorable, food contact acceptable, excellent molding processability and dimensional stability, together with high temperature structural properties, all of these performance make it suitable for consideration in a number of applications.
2. Typical Characteristics
| 1. Permanent transparency and high light transmission |
| 2. High dimensional stability and easy processing |
| 3. Excellent abrasion and scratch resistance |
| 4. Superior impact resistance to high / low temperature |
| 5. Good chemical and solvent resistance |
| 6. High stress crack resistance |
| 7. Easily colorable and food contact approval |
3. Application
| 1. Coating material |
| 2. Cosmetic Packaging/Food Contact Packing |
| 3. Medical/Healthcare Applications |
| 4. Monolayer-blow Molded Tubes |
| 5. Automobile Components |
| 6. Film/Cast Film/Non-oriented Film/Oriented Film |
| 7. Blow Molding Container |
| 8. Textile |
4. Physical Properities
| Item | Unit | Test Method | Values |
| Charpy Notched Impact Strength | KJ/m² | GB/T 1043-93 | 10 |
| Charpy Unnotched Impact Strength | KJ/m² | GB/T 1043-93 | 70 |
| Tensile Strength | MPa | GB/T 1040-92 | 85 |
| Elongation at Break | % | GB/T 1040-92 | 15 |
| Flexural Strength | MPa | GB 9341-2000 | 120 |
| Flexural Modulus | MPa | GB9341-2000 | 2700 |
| Density | g/cm³ | GB 1033-86 | 1.18 |
| HDT (0.45 MPa) | ºC | GB1634-79 | 120 |
| HDT (1.8 MPa) | ºC | GB1634-79 | 110 |
| Shore Type D Hardness | -- | GB 2411-80 | 85 |
