Product Description

Application:
Suitable for low pressure transfer of various Fluids and air, such as fuel, water, light chemicals, oxygen, gas for watering systems, peristaltic pumps, electrical and thermal insulation, analytical systems in plant equipment, laboratories, watering system and many other low pressure industry applications.
Features:
non toxic, clear PVC wall allows full visual flow of materials, weathering resistant, smooth tube for resistance to collection or blockage, easily characterized by a round, rectangular or square shape, different colors available, different sizes to fit standard commercial barbed fittings, we can also make the hose with non-phthalate formulations.
Specification:

Inner Diameter		Wall Thickness		Weight	W.P.(at 23ºC)		Std Length
inch	mm	inch	mm	kg/m	bar	psi	m	ft
1/8	4	0.078	2	0.051	12	175	100	300
13/64	5	0.098	2.5	0.076	12	175	100	300
1/4	6	0.098	2.5	0.087	12	175	100	300
5/16	8	0.098	2.5	0.105	10	145	100	300
3/8	10	0.098	2.5	0.13	10	145	100	300
1/2	12	0.118	3	0.185	9	130	100	300
5/8	16	0.118	3	0.23	8	116	100	300
3/4	19	0.118	3	0.27	6	87	100	300
7/8	22	0.118	3	0.305	5	73	100	300
1	25	0.118	3	0.34	4	60	100	300
1-1/4	32	0.157	4	0.59	4	60	100	300
1-/1/2	38	0.157	4	0.69	4	60	50	150
1-3/4	45	0.217	5.5	1.14	4	60	50	150
2	50	0.236	6	1.38	4	60	50	150
2-1/2	64	0.276	7	2.03	4	60	50	150
3	76	0.63	16	2.75	4	60	50	150

Company Information
Since its establishment, Weifang Kaida Plastic has always followed the principle of quality first and credit first. After years of unremitting efforts, courage to explore and innovate, it has developed into a comprehensive enterprise with certain influence at home and abroad in the production of plastic hoses, plastic machine manufacturing, product research and development and sales. Existing PVC steel wire spiral reinforced hose, PVC fiber reinforced hose, PVC high strength plastic-coated water belt, PVC transparent hose, PVC special high-pressure pipe, PVC garden pipe, PVC spiral pipe and more than a dozen products, hundreds of specifications of PVC hose and equipment.

Shipment & Payment Terms:

MOQ	1000 m per size,per style
Delievery Time	Usually 10-20 days
Production Capacity	4000 tons per month
Port	Qingdao
Paying Terms	30% TT payment in advance,the balance TT before shipment
Samples	By DHL UPS TNT

COMPANY CERTIFICATE

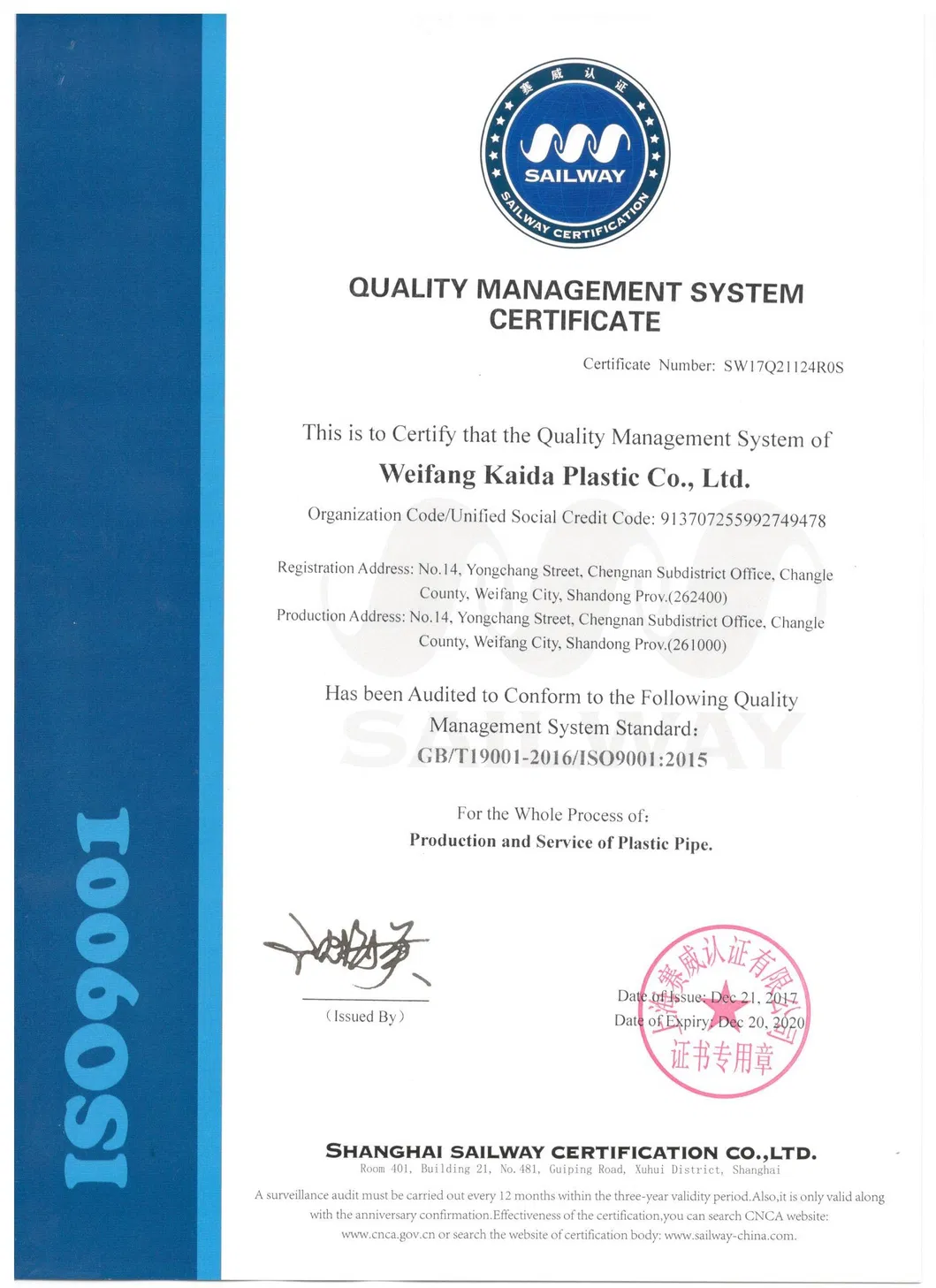

Our company have ISO9001 certificate.

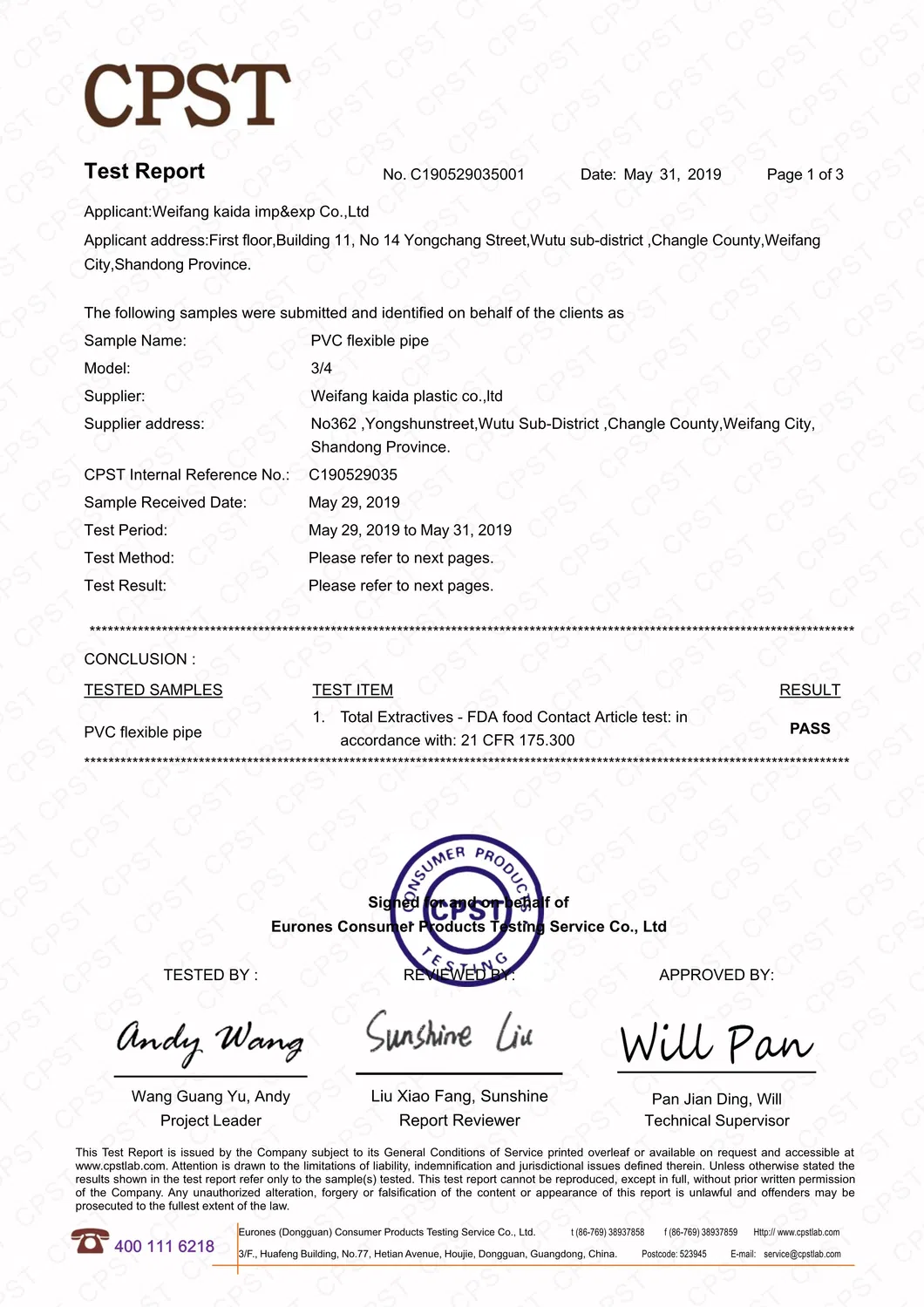

For Products we have RoHs REACH and FDA certificate. our products can export to anywhere of the world!
