Product Description

Marine Dredger Dredging Dredge Cable HDPE PE Plastic Floating Pipe Hose Float Floater

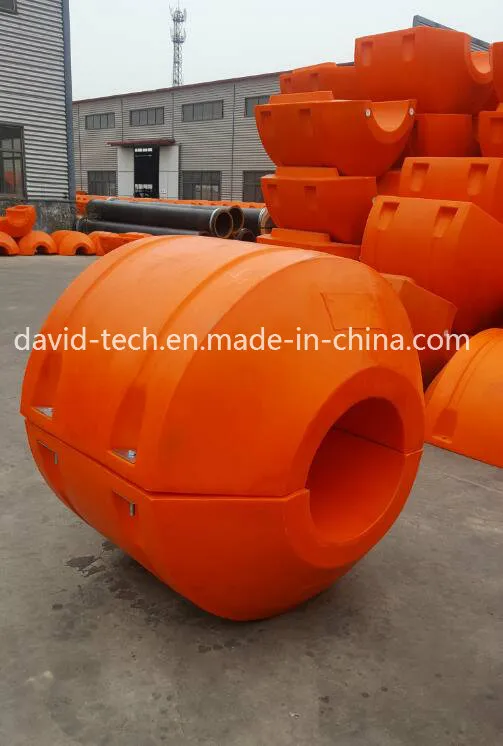

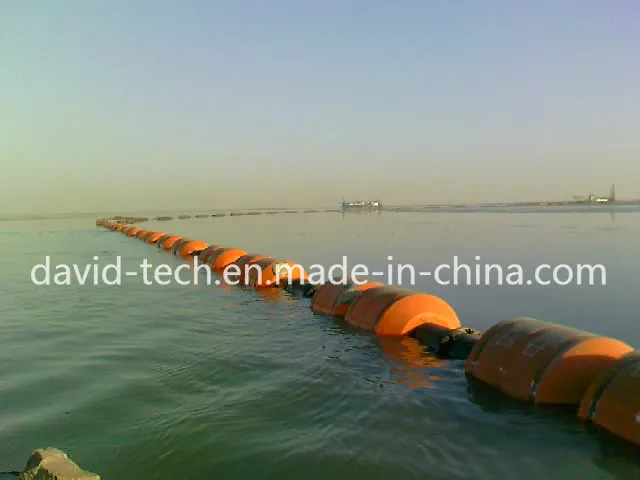

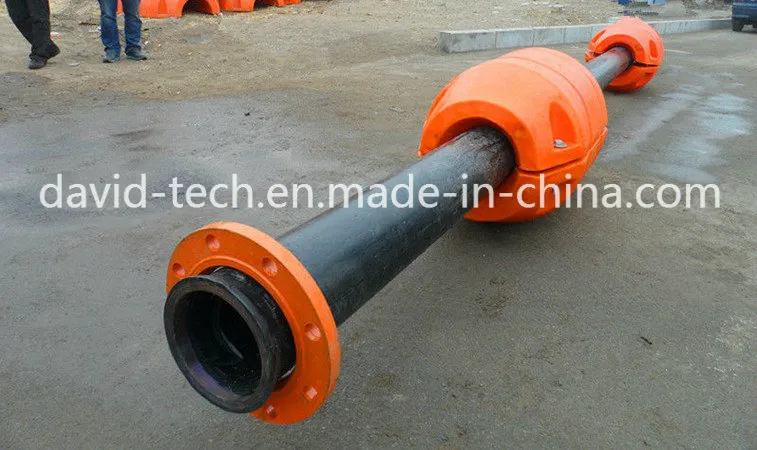

The Floater is made from medium density polyethylene material with excellent flexibility, inside is filled with high strength polyurethane foam. With reasonable structure and good performance, the MDPE floater is widely used for HDPE Pipeline and Steel Pipeline.

Property of floater:

1.Good flexibility, and excellent impact resistance, particularly suitable for the installation in the sea.

2.Light weight, easy for installation and movement, with much lower transportation costs.

3.Corrosive Resistance, longer working life, it could work 3 times longer than steel pontoons.

4.The costs and performances are much better than steel pontoons, with more competitive price.

Polyethylene Hull Mechanical Strength:

No.	Item		Performance
1	Tensile Strength Mpa≥		12
2	Elongation at break %≥		10
3	Impact Strength KJ/m2		31
4	Bending Strength Mpa≥		15.7
5	Weather Resistance (total 3.5GJ/m2 aging capacity)	Elongation at break %≥	10
6	Weather Resistance (total 3.5GJ/m2 aging capacity)	OIT 200ºC mm≥	10

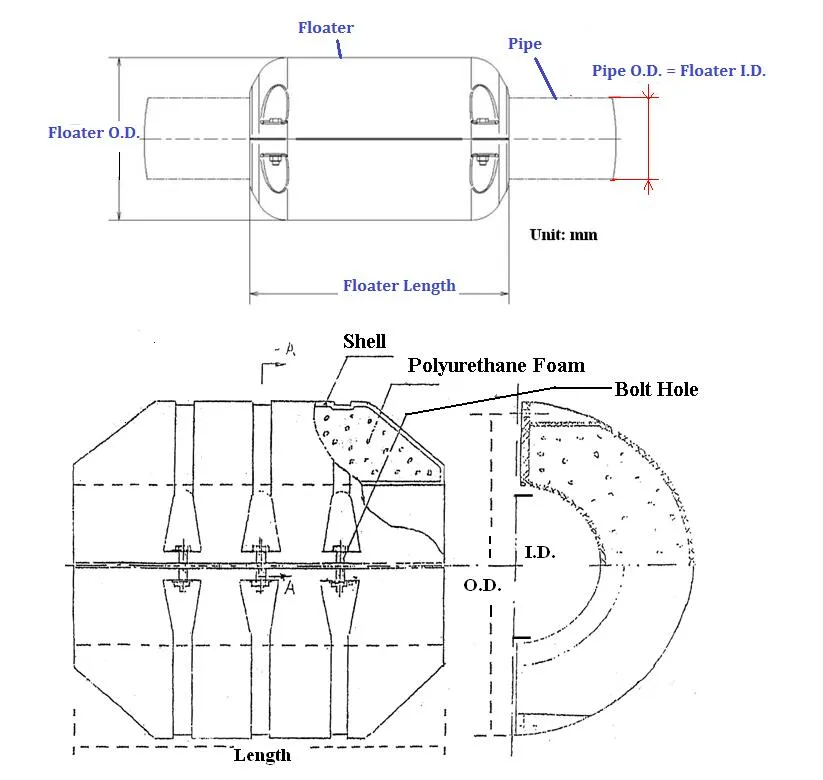

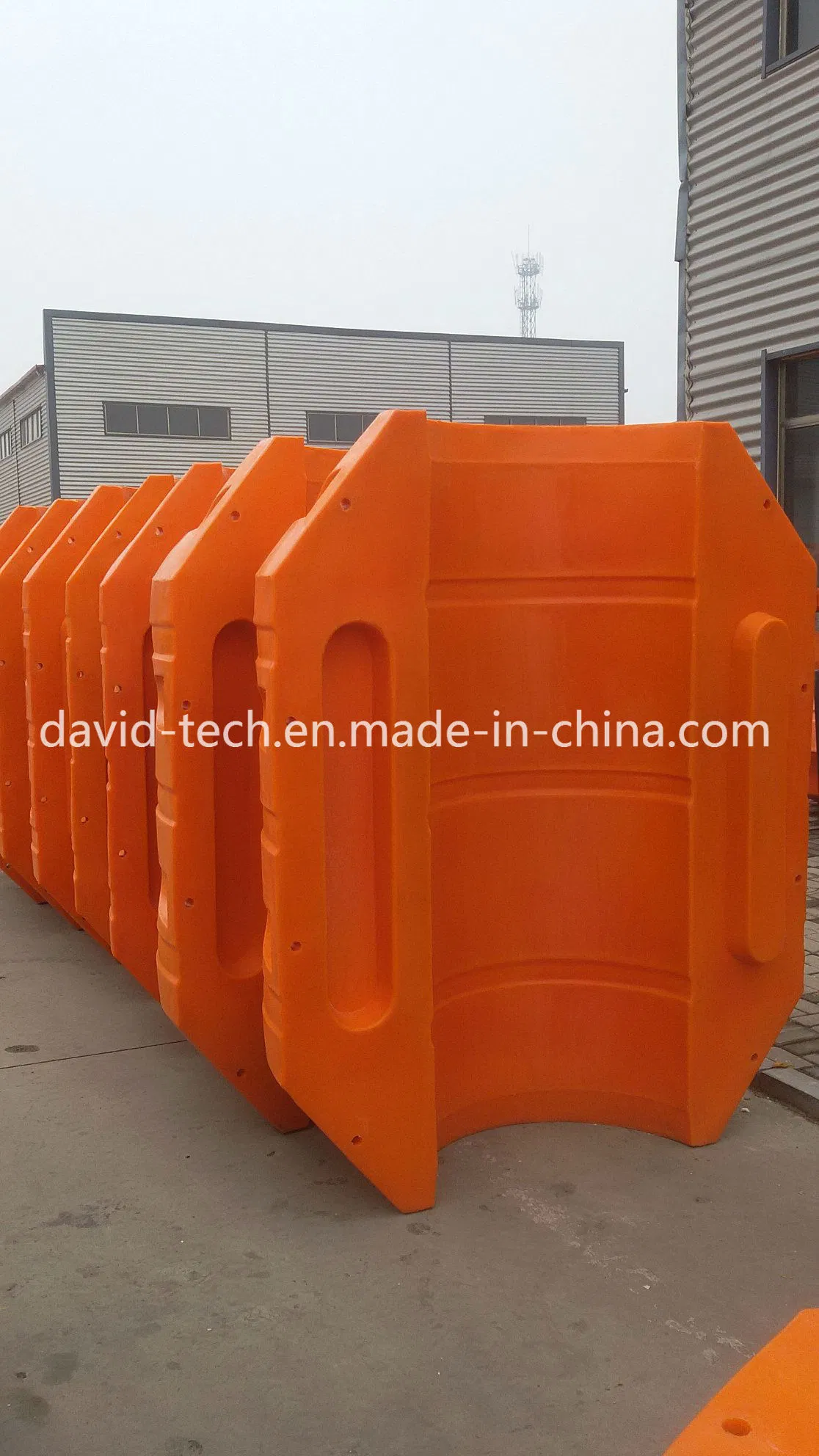

Structure of dredging floaters:

No.	Structure Name	Material

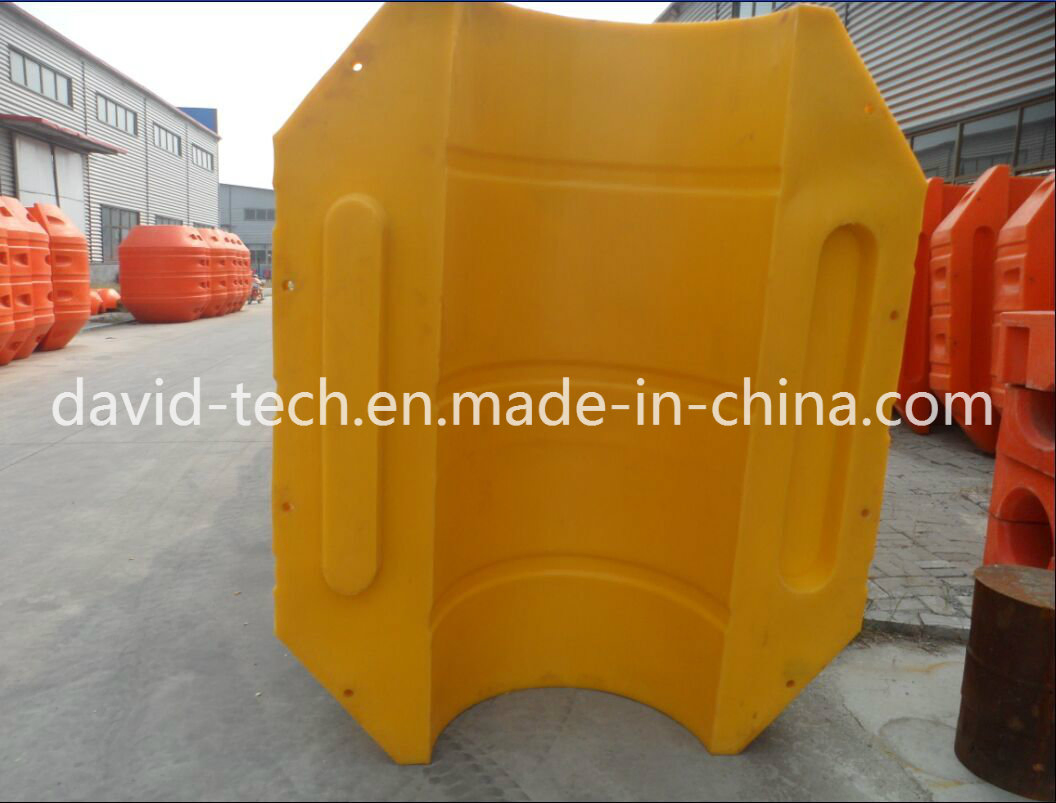

1	Hull	Polyethylene
2	Polyurethane hard Foam Core	Closed-cell hard foam

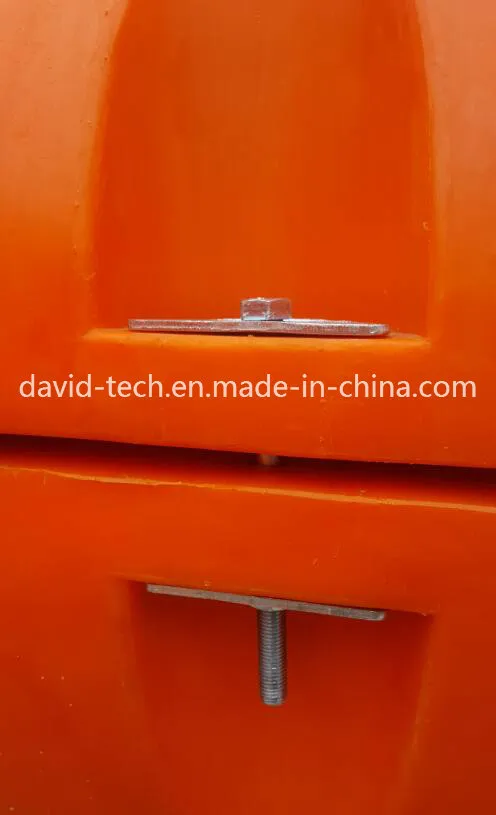

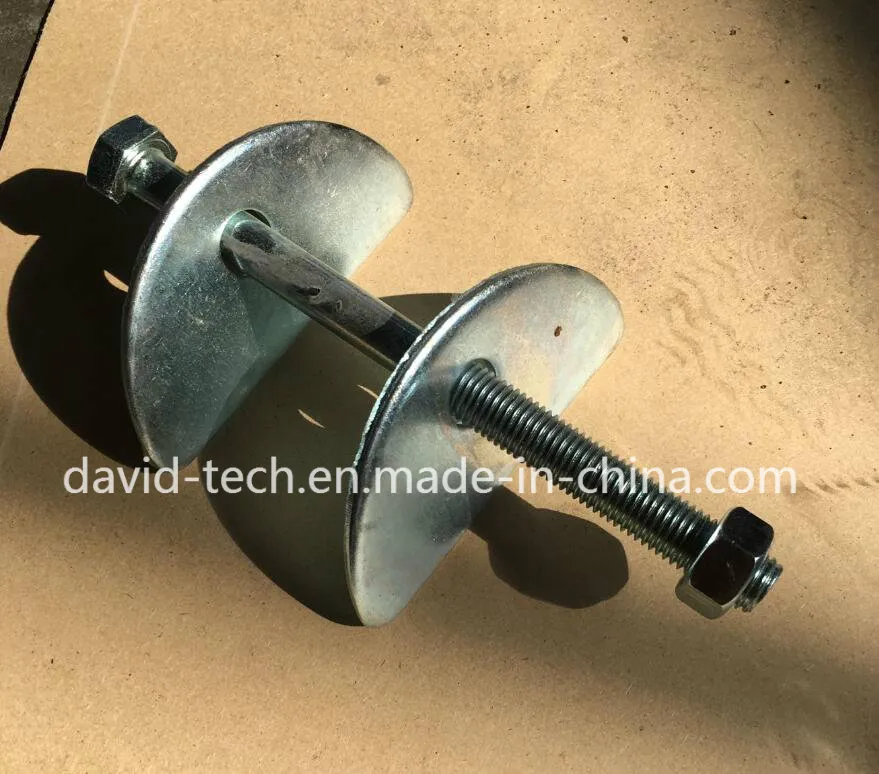

3	Bolts & Nuts & Washers	Galvanized/Stainless Steel

Marine Dredger Dredging Dredge Cable HDPE PE Plastic Floating Pipe Hose Float Floater

Pipe I.D.	Thickness of Pipe	Floater I.D.	Floater O.D.	Floater Length	Thickness of Plastic	Net Buoyancy	Note
mm	mm	mm	mm	mm	mm	KG/Floater	Note
76	5	86	300	580	6	70	Floater I.D. will be adjusted by Pipe O.D.
200	6	212	500	800	7	200
250	6	262	700	900	7	310
250	6	262	850	1100	7	420
285	6	297	700	1200	7	420
350	6	362	1100	1100	7	920
400	8	416	1100	1200	8	1020
414	8	430	1200	1200	8	1200
450	8	466	1300	1300	8	1500
500	10	520	1400	1400	9	1800
550	10	570	1400	1550	9	2219
600	10	620	1400	1700	11	2400
650	10	670	1480	1800	11.5	2930
700	12	724	1600	1900	12	3593
750	12	774	1600	2000	13	3800
800	15	830	1800	2000	14	4800
850	15	880	1800	2200	15	5140
900	18	936	2200	2500	16	8180
Other sizes of floaters can be made upon request

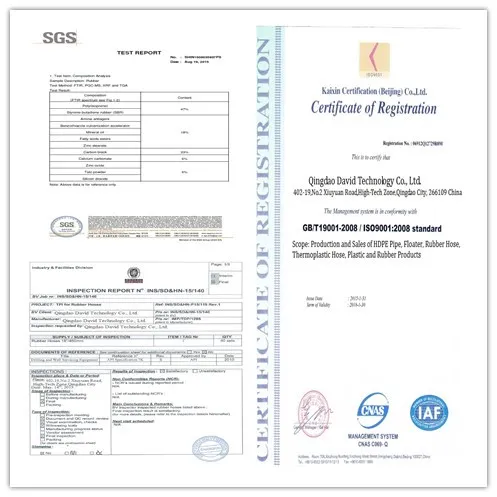

Our Certification:
Marine Dredger Dredging Dredge Cable HDPE PE Plastic Floating Pipe Hose Float Floater

Some of our oversea clients:
Marine Dredger Dredging Dredge Cable HDPE PE Plastic Floating Pipe Hose Float Floater

Qingdao David Technology Co., Ltd. located in Qingdao City of Shandong Province, is a professional manufacturer of Floater in China, we have manufactured and developed it since 2008, with high technology of working experience, we guarantee our products' quality is much more excellent than others.

We know products' quality is company's life, so we are strict in testing all of products before shipping. All of products will be strictly inspected according to quality management system.
Our quality is very excellent and our price is very competitive. We have sold to more than sixty countries, such as North America, South America, Europe, Southeast Asia, Africa, Oceania, Mid East. We wish to cooperate with more customers forever!
Our principle: Excellent Quality, Competitive Price, Best Service,
Sincerely welcome you come to visit our factory at anytime!
