Product Description

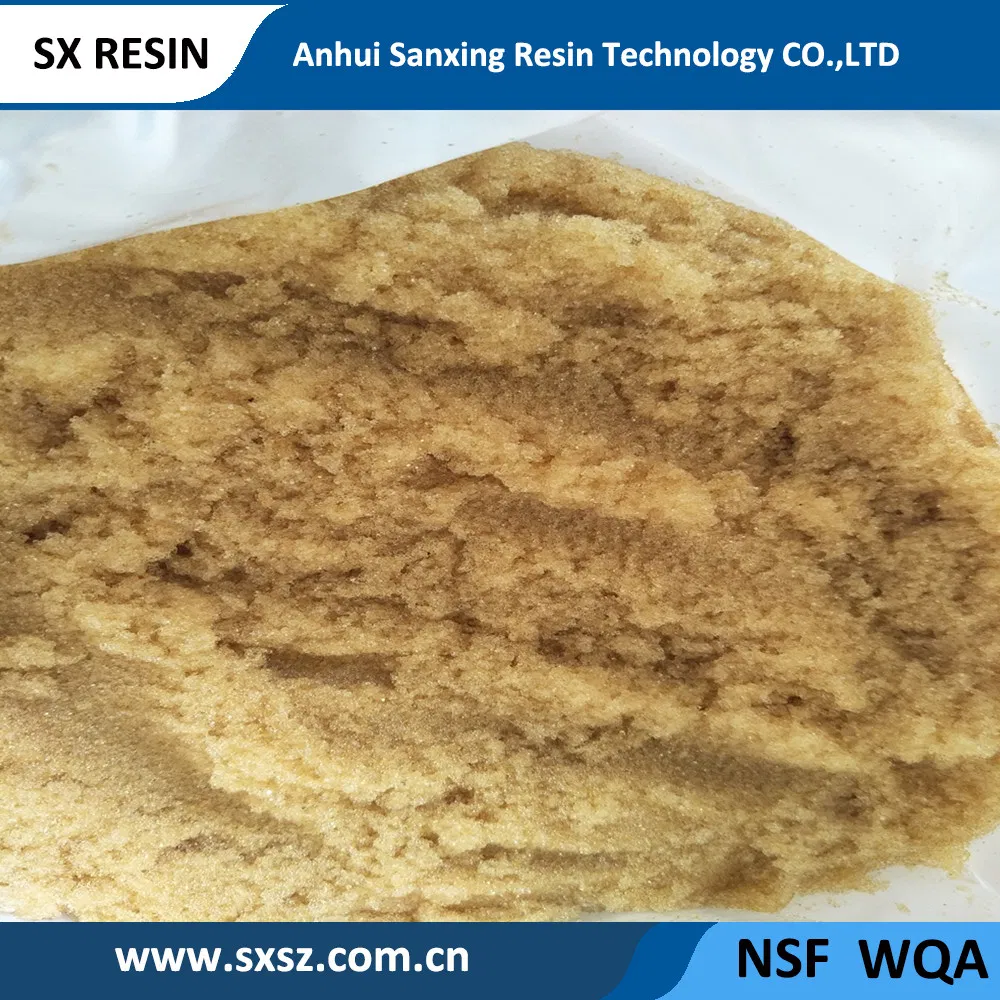

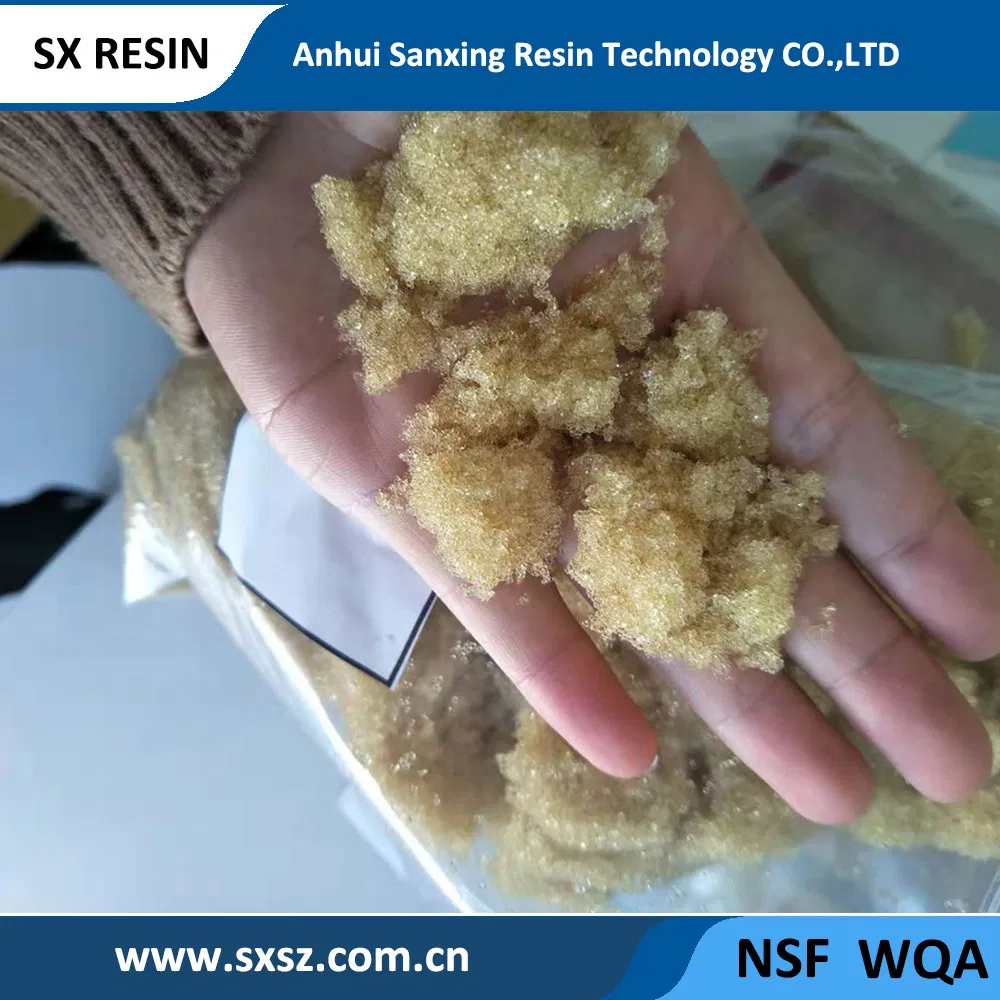

MB300 Mixed Bed Resin
1. Description
MB300 is a high quality resin mixture for direct purification of water, nuclear product are used in ultra-pure water, radiation waste, pharmaceuticals, semiconductors, and condensate polishing. Our mixed bed resins may be used in polishers following other types of water processing.
2.Typical Physical and Chemical Properties:

Items	Units	OH ^- Form		H ⁺ Form
Polymer Matrix Structure	---	Gel PolyStyrene Crosslinked with DVB
Functional Group	---	Quaternary Amine		Sulfonic acid
Volume ratio	---	50%		50%
Total Exchange Capacity, min.	eq/l	1.0		1.8
Water Retention Capacity	%	53-60		45-50
Particle Size Distribution	mm	0.40-1.25
>1.25 mm max.	%	5		5
<0.40 mm, max	%	2		2
Whole Bead Count, min.	%	95		95
Moisture Content as shipped, max	%	65
PH Range, Stability	---	0-14
Shipping weight (approx.)	g/l	730
Operating temperature		---
Ionic conversion, min.		100°C (212°F) max.
regenerative bed		60°C (140°F) max.
Ionic conversion, min.	%	90	95

3.Applications
It is mainly used inthe production of high purity water

=====================================================================================

MB400 Mixed Bed Resin
1. Description
MB400 is a high quality resin mixture for direct purification of water. The residuals produce average conductivity values of about 0.1us/cm for a major portion of the service run which may be extended depending up on the final water quality acceptable
2.Typical Physical and Chemical Properties:

Items	Units	OH ^- Form		H ⁺ Form
Polymer Matrix Structure	---	Gel PolyStyrene Crosslinked with DVB
Functional Group	---	Quaternary Amine		Sulfonic acid
Volume ratio	---	60%		40%
Total Exchange Capacity, min.	eq/l	1.15		1.9
Water Retention Capacity	%	53-60		45-50
Particle Size Distribution	---	---		---
>1.25 mm max.	%	5		5
<0.40 mm, max	%	2		2
Whole Bead Count, min.	%	95		95
Moisture Content as shipped, max	%	65
PH Range, Stability	---	0-14
Shipping weight (approx.)	g/l	700-750
Operating temperature		---
Ionic conversion, min.		100°C (212°F) max.
regenerative bed		60°C (140°F) max.
Ionic conversion, min.	%	90	95
