Product Description

TM-191D Unsaturated Polyester Resin
DCPD TYPE RESIN

1.Brief Introduction:
TM-191D UPR is a kind of ortho Pre-accelerated thixotropic unsaturated polyester resin, add thixotropic imported silica and other additives, with vertical flow not hang, good water resistance, low shrinkage, high mechanical strength, especially suitable for auto parts

2, Liquid resin technical data(25ºC):

Item	Unit	Index	Test standard

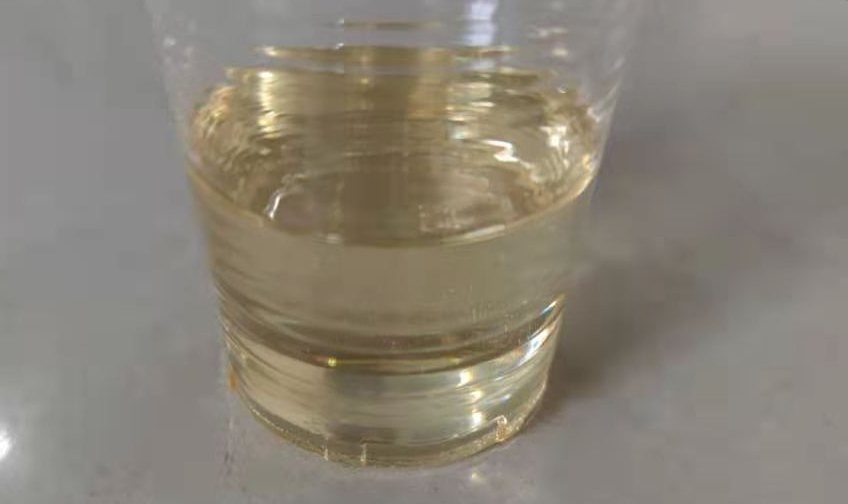

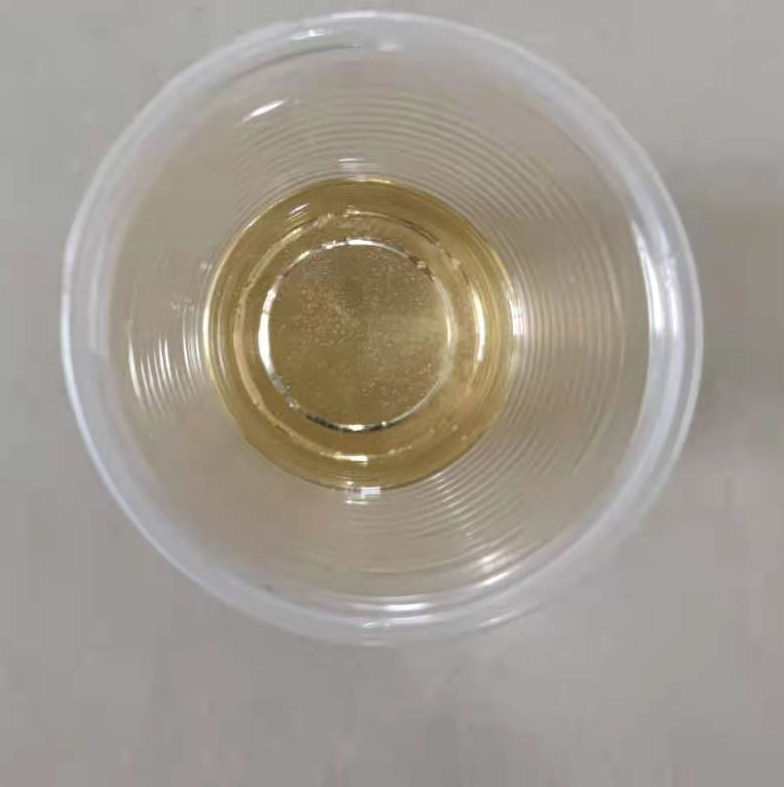

Appearance	--	Clear pale yellow liquid	GB/T8237.6.1.1
Viscosity	Pa.S	0.30~0.45	GB/T7193.4.1
Gel time	min	5.0~12.0	GB/T7193.4.6
Acid value	mgKOH/g	18.0~26.0	GB/T2895
Non-volatile	%	62.0~68.0	GB/T7193.4.3

Remark: 25ºC gel time test: Resin 50g, Accelerator EC8:1.5g, Curing agent Butanox M-50:1.0g.

3,Resin casting matrix performance(for reference)

Item	Unit	Measured value		Test standard
Item	Unit	Cast matrix	FRP	Test standard
Tensile strength	MPa	50	--	GB/T 2567-2008
Tensile strength	MPa	--	310	GB/T 1447-2005
Elongation at break	%	2.0	--	GB/T 2567-2008
Flexural Strength	MPa	110	--	GB/T 2567-2008
Flexural Strength	MPa	--	330	GB/T 1449-2005
Impact Strength	KJ/m²	7.8	--	GB/T 2567-2008
Impact Strength	KJ/m²	--	243	GB/T 1448-2005
HDT	ºC	92	--	GB/T 1634-2004
Barcol Hardness	--	45	61	GB/T 3854-2005

Remark:
1) casting matrix should follow GB/T8237-2005. Curing system: accelerator 0.8%Co/oct 1.0 %, curing agent: Butanox M-50 1.5%.
2) Post-curing of casting matrix: room temperature*24 hours+60ºC*3 hours+110ºC*2 hours.
3) Post-curing of FRP: room temperature*24 hours+60ºC*3 hours+110ºC*2 hours.

4,Instruction for use
1) High efficiency colorless accelerator shall be avoided in use. Otherwise, it will be easy to cause poor curing of products, which leads to surface stickiness. Special FRP accelerant such as E4 shall be selected to use.
2) When the ambient temperature is high and the gel time of resin is short, do not reduce the dosage of curing agent, gel retardants should be added as needed.
3) When the humidity of construction environment or the temperature is high, it is also easy to cause the surface to become sticky. Wax liquid can be added appropriately.

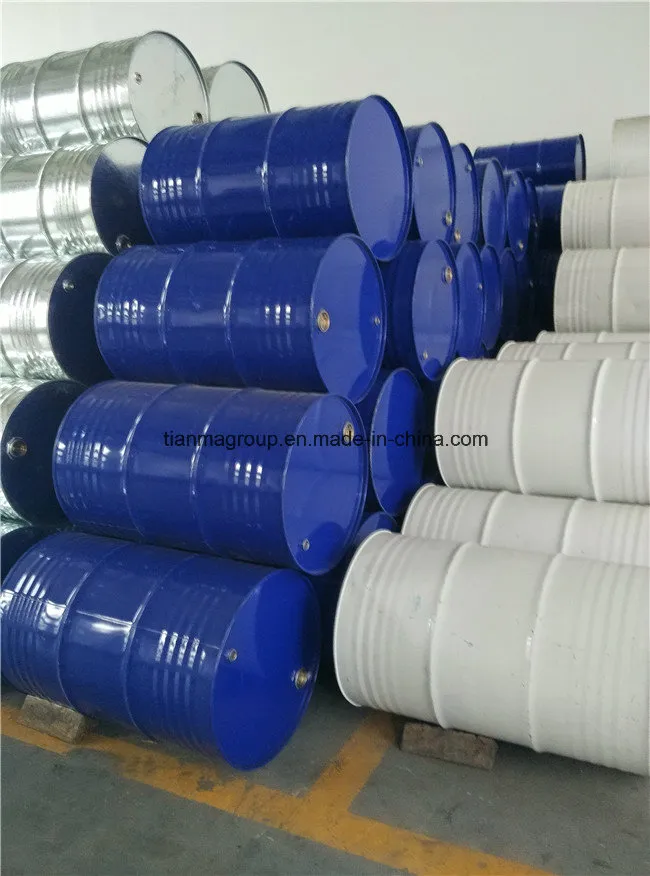

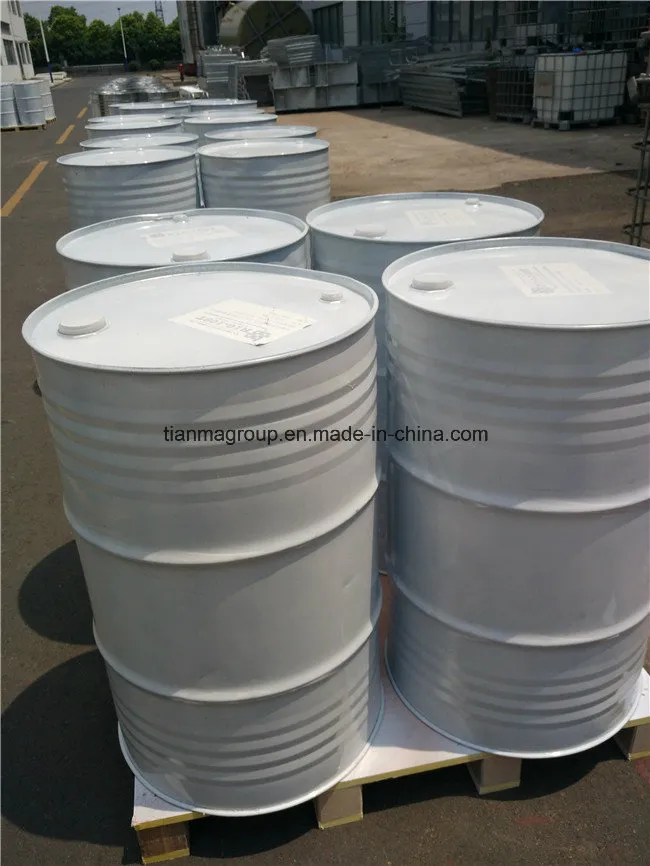

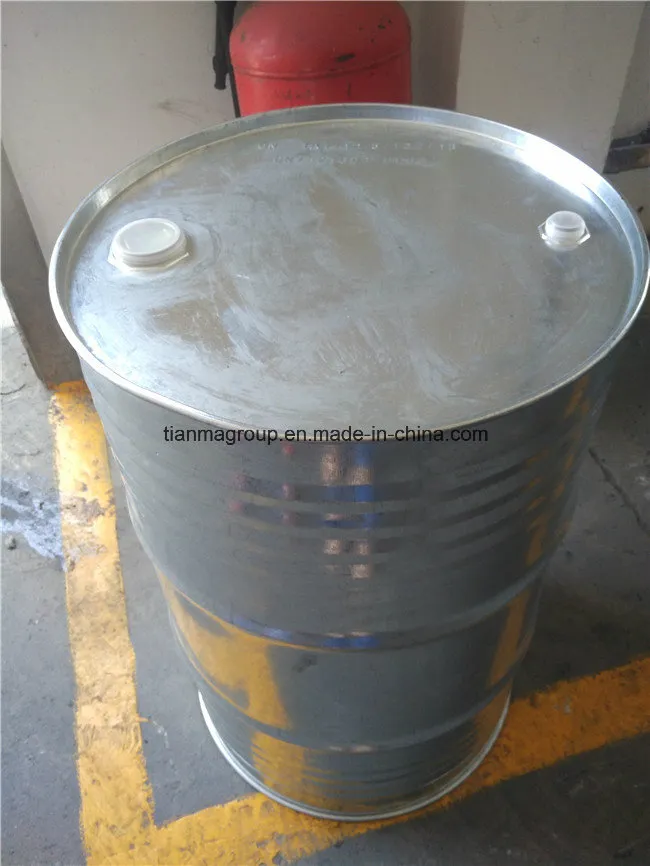

5,Storage And Transportation
The loading and transportation must follow the rules in chapter 5 of dangerous chemicals regulations .The products should be stored under 25ºC and avoid the sunlight, heat source ,fire source and radiant point. The shelf life in right environment is 3 months.

6,Safety data sheet(SDS)
Before using this product, please read the SDS of this product in detail.
