Product Description

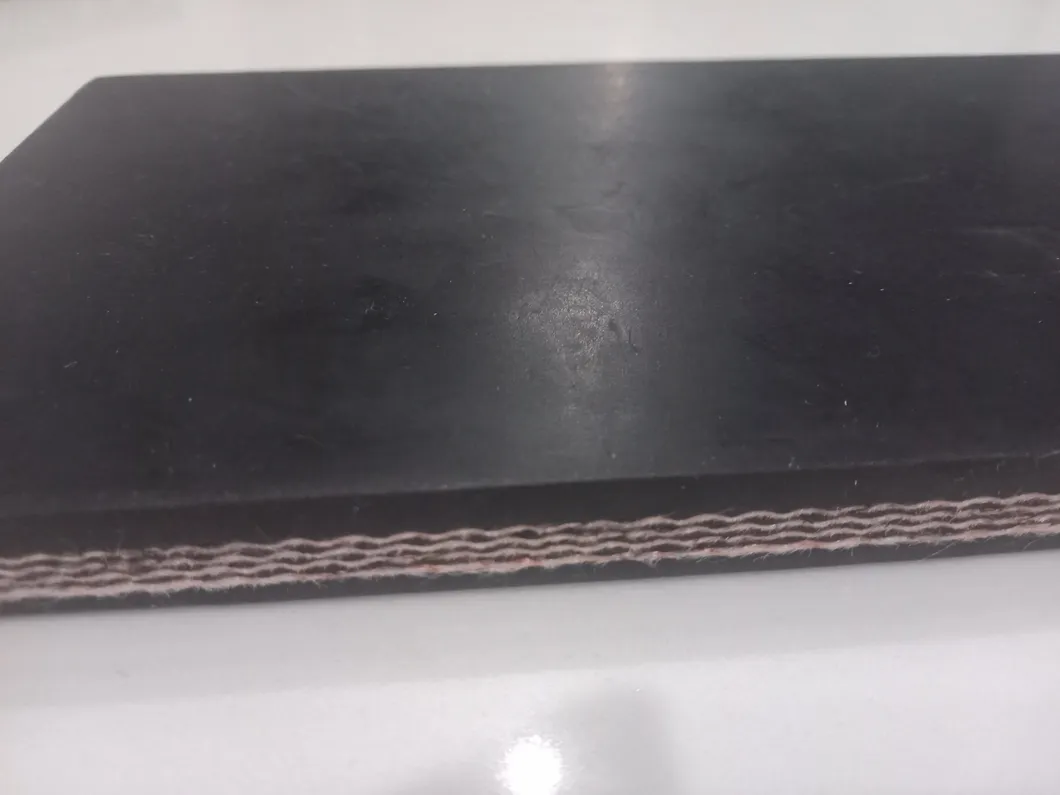

Structure
Nylon fabric as carcass
Carcass covered by rubber on both top and bottom side

Characteristics:
Belt body light and thin, High strength, Excellent trough ability, Long working life, Fatigue resistant, Impact resistant.

Classify by performance:
General use conveyor belt,
Oil resistant conveyor belt,
Acid/alkali resistant conveyor belt,
Cold resistant conveyor belt,
Anti-static electricity conveyor belt.

Usage:
Widely used in long distance, heavy load conveying occasions.

Technical Specifications
Fabric materials	Fabric structure		Fabric code	No. of fabric plies	Width (mm)	Cover thickness
Fabric materials	Warp	Weft	Fabric code	No. of fabric plies	Width (mm)	Top	Bottom
Nylon canvas	Nylon	Nylon	NN100	2~10	200~2000	3.0~8.0	1.5~4.5
			NN150	2~10	200~2000	3.0~8.0	1.5~4.5
			NN200	2~8	200~2000	3.0~8.0	1.5~4.5
			NN250	2~8	200~2000	3.0~8.0	1.5~4.5
			NN300	2~6	200~2000	3.0~8.0	1.5~4.5
			NN400	2~6	200~2000	3.0~8.0	1.5~4.5
