Product Description

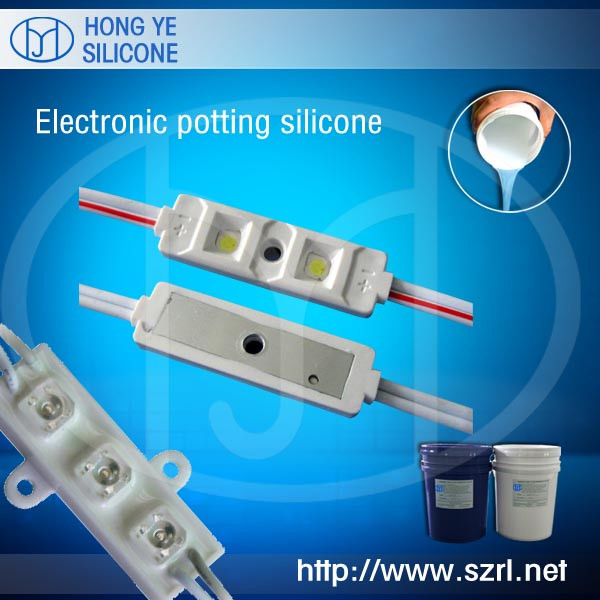

ACC similar electronic potting silicones for LED products

Electronic potting compound is a kind of two components(1:1 mixing ratio) addition cure silicone with the characteristics of heat-conducting , low viscosity , inherent flame resistance ,waterproofing ,etc.

It can cure both at room temperature and heated temperature and the curing time can be accelerated by higher temperaturer .

Application of electronic potting compound :

1.Applying for the surface of PC,PP,ABS,PVC,Metal ,etc.

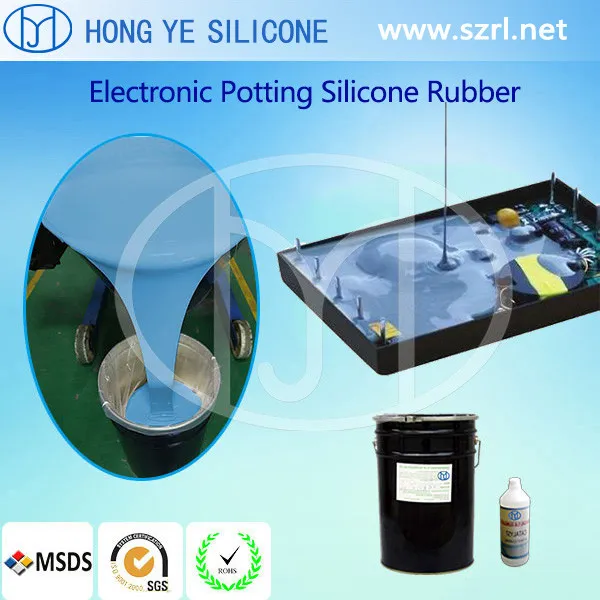

2.High powered electronic encapsulation and DC/DC module and circuit board which requires heat dissipation and high

temperature resistance

3.Insulation ,waterproof and bonding of general electronic components

4.Filling for LED, LCD electronic display ,circuit board ,PCB substrate ,etc

5.Outdoor protection for LED screen.

Acc Similar Electronic Potting Silicones for LED Products

Product data sheet :

Properties index		Part A	Part B
Before Curing	Appearance	Transparent fluid	Colorless/yellowish fluid
	Viscosity(cps)	2500±500	-
Features when operation	Mixing Ratio(By weight)	1:1
	Operating Time(25°C /min)	20~30
	Curing time(hr,basically cured)	3
	Curing time(hr,perfectly cured)	24
	Hardness(shore A)	50±2
After Curing	Thermal Conductivity[W(m·K)]	≥0.2
	Dielectric Strength(kV/mm)	≥25
	Dielectric permittivity(1.2MHz)	3.0~3.3
	Volume resistivity(Ω·cm)	≥1.0×1016
	Fire Resistance	94-V1

(Pls note: the above data for this product in 25 °C temperature, 55 percent humidity conditions, for reference. The accurate data is measured by customers to when using.)

Shelf life for ACC similar electronic potting silicones for LED products

8~10months, when stored in a dry & cool place under the room temperature 25.

Packing for ACC similar electronic potting silicones for LED products

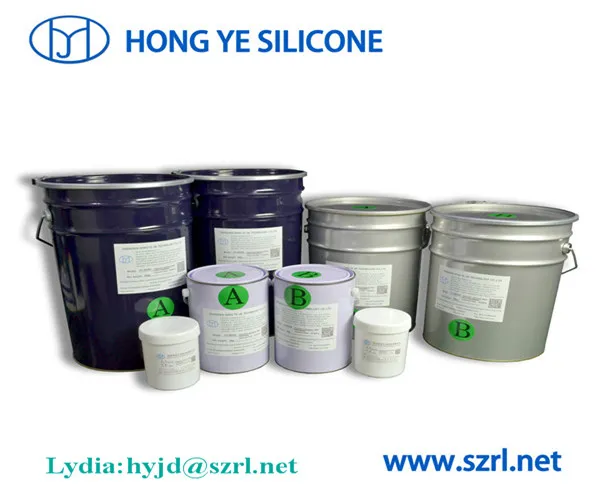

20kg/drum for part A+ 20kg/drum for part B in one set
