Liquid Potting Silicone for LED Control Gear Ignitors
liquid Potting silicone for Led control gear ignitorsApplications of liquid Potting silicone for Led control gear ignitors :electronic potting silicon is mainly applied for the surface of polycarbonate, PP, ABS, PVC, metal etc., which is suitable for the electronic moisture-proof and waterproof, fi......
Send Inquiry
Product Description
liquid Potting silicone for Led control gear ignitors
Applications of liquid Potting silicone for Led control gear ignitors :

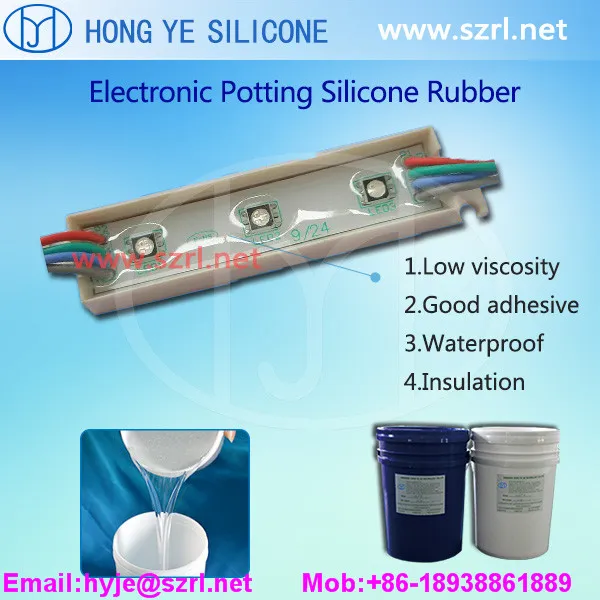

electronic potting silicon is mainly applied for the surface of polycarbonate, PP, ABS, PVC, metal etc., which is suitable for the electronic moisture-proof and waterproof, fixed. It is applicable to sealing bonding coating LED for electronic parts.
Features of liquid Potting silicone for Led control gear ignitors :
electronic potting silicon: is two-component condensation cure silicone with the characteristics of low viscosity, easy operation, good bonding feature. The safety of potting compound silicone can reach the EU-ROHS requirements fully.
Operations of liquid Potting silicone for Led control gear ignitors :
1. electronic potting silicon: First stir the Part A completely before using (to be sure the segiment is evenly mixed) to mixing the Part B with Past A.
2. electronic potting silicon: Mix the Part A and Part B completely according to the mix ratio (10:1 by weight) and can be used after deaired about 3 minutes.
3. electronic potting silicon::This product can be vulcanized at room temperature. After basic curing then go to the next step. Full curing process will be within 24 hours. The enviromental temperature, especially the humidity, will affect the curing time greatly. Customers should make appropriate adjustments according to local conditions. The mixed silicone should be finished at one time to avoid any waste of material.
Potting silicone for PCB products : packaging, storage and transportation:

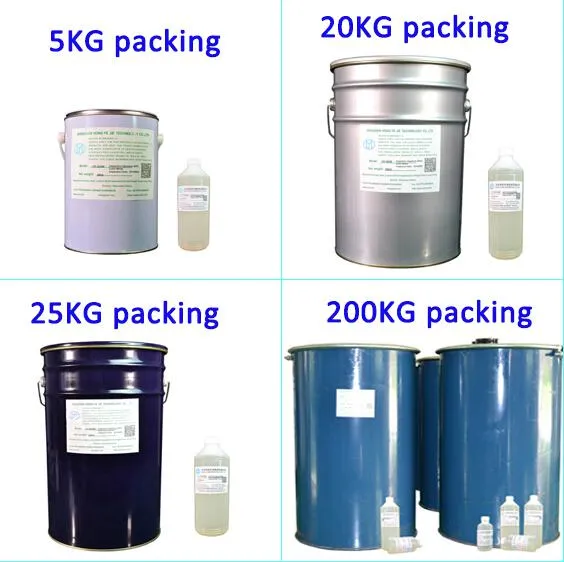

1. electronic potting silicon: is vacuuming packed with 20kg/drum A. 2kg/drum B.
2. electronic potting silicon: should be stored in a cool dry place, avoid the sun and rain, it must be kept away from acids, alkalis, salts and other compounds.
3. electronic potting silicon:, shelf life is one year from the date of production under 25°C , and it can be re-used through a re-examination even if over its storage period.
Technical Parameters ---- For example HY 9055
| Model | Color | Mixing ratio | Mixd Viscosity (mPa·s) | Pot life (mins) | Curing time (hrs, 25°C) | Hardness(A0) | Linear expansibiliity [m/(m·K)] | Themal Conductivity [w(m·k)] | Dielectric Strength (KV/MM) | Volume Resistivity (Q·cm) | Fire Resistance |
| HY 9055 | grey | 1 : 1 | 2000-3000 | 60-120 | 6-12 | 55±5 | ≤2.2×10-4 | ≥0.8 | 3.0~3.3 | ≥1.0×1016 | UL94-V1 |
