Product Description

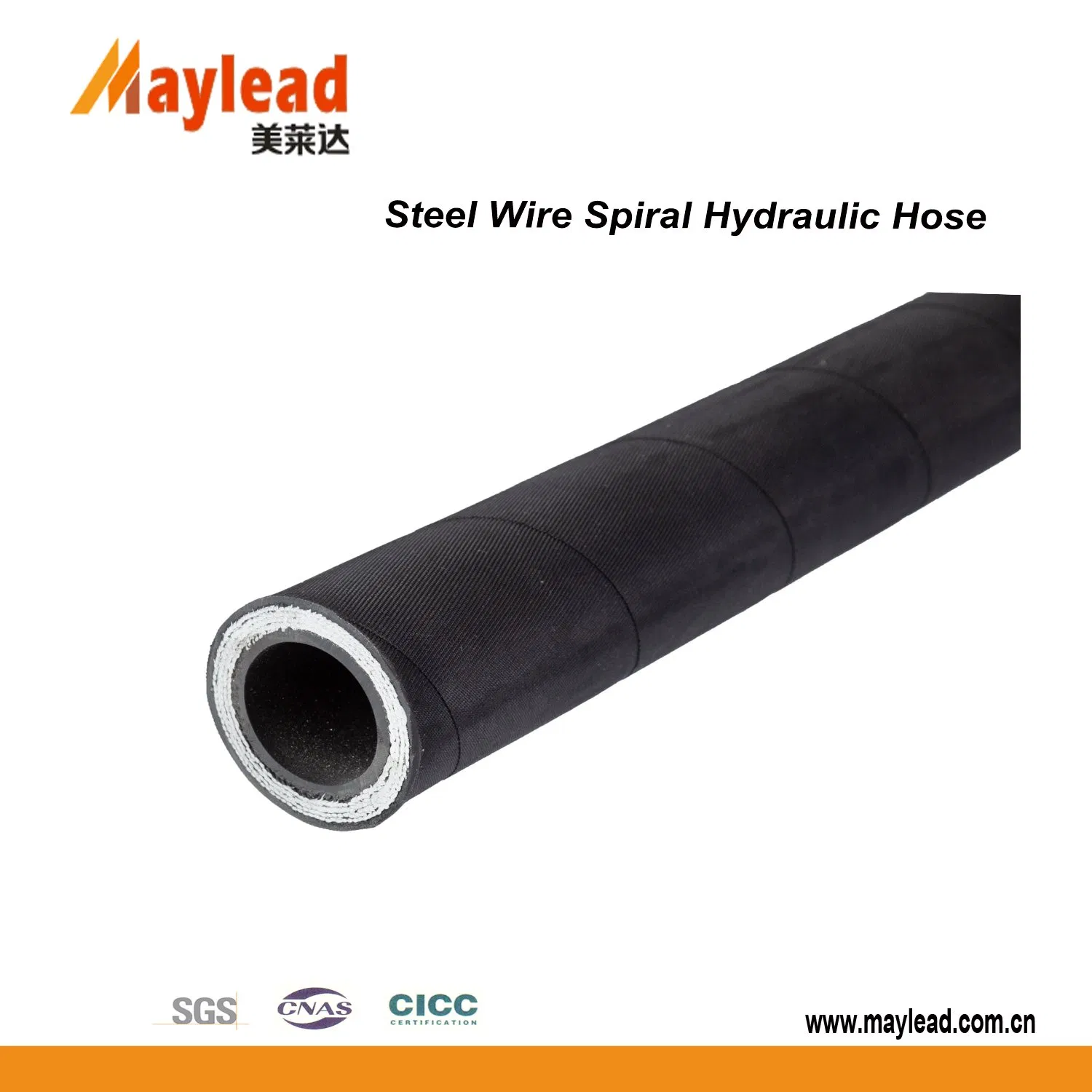

4 Layers High Pressure Steel Wire Spiral Rubber Hose

CONSTRUCTION:This hose consists of an inner tube of oil-resistant synthetic rubber, four wire spiral reinforcement, and an oil- and weather-resistant synthetic rubber cover.

APPLICATIONS: Hose range suitable to carry hydraulic fluids, such as glycol, mineral oils, emulsion,
hydrocarbons, etc.

WORKINGTEMPERATURE: From -40°C up to +100°C

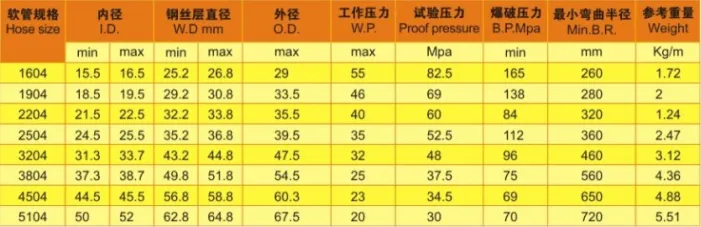

3804 3/2" Hydraulic Steel Wire Spiral Rubber Hose Q/Mld02

3804 3/2" Hydraulic Steel Wire Spiral Rubber Hose Q/Mld02

Hose specification	Nominal diameter mm	Hose diameter mm	Enhancement layer outer diameter mm	Reference diameter mm	Pressure of work Mpa	Burst pressure Mpa	Minimum bending radius mm	Hose theoretical weight Kg/m	Hose specification
901-19-2ST	19	3/4	19+0.8	27±0.5	31±0.4	28	72	240	1.07
901-25-2ST	25	1	25+1.4	33±0.5	37±0.4	21	64	300	1.3
901-16-4ST	16 5/8		16+0.7	26±0.5	29±0.4	55	160	200	1.36
901-19-4ST	19 3/4		19+0.8	29.5±0.5	32.5±0.4	46	140	240	1.59
901-22-4ST	22 7/8		22+0.5	33±0.5	37±0.4	41	124	270	1.9
901-25-4ST	25 1		25+1.4	35.2±0.5	38.5±0.4	35	112	300	1.94
901-32-4ST	32 1-1/4		32+1.0	44±0.5	48±0.4	32	96	420	2.67
901-38-4ST	38 1-1/2		38+1.3	51±0.5	55±0.4	25	75	500	3.68
901-51-4ST	51 2		51+1.0	64±0.5	68±0.4	20	60	630	4.76
901-32-6ST	32 1-1/4		32+1.0	47±0.4	51±0.4	41	124	420	3.07

Hose specification	Nominal diameter mm		Hose diameter mm	Enhancement layer outer diameter mm	Reference diameter mm	Pressure of work Mpa	Burst pressure Mpa	Minimum bending radius mm	Hose theoretical weight Kg/m
902-19-4SH	19	3/4	19+0.8-0.4	27.6~29.2	31.4~33	42	168	280	1.59
902-25-4SH	25	1	25+1.4-0	34.4~36	37.5~39.9	38	152	340	1.94
902-32-4SH	32 1-1/4		32+1.0-0.6	40.9~42.9	43.9~47.1	32	130	460	2.67
902-38-4SH	38 1-1/2		38+1.3-0.3	47.8~49.8	51.9~55.1	29	116	560	3.68
902-51-4SH	51 2		51+1.0-0.6	62.2~64.2	66.5~69.7	25	100	700	4.76

Hose specification	Nominal diameter mm	Hose diameter mm	Enhancement layer outer diameter mm	Reference diameter mm	Pressure of work Mpa	Burst pressure Mpa	Minimum bending radius mm	Hose theoretical weight Kg/m	Hose specification
902-6-4SP	6	1/4	6+1.0+0.2	14.1~15.3	17.1~18.7	45	180	150	1.04
902-10-4SP	10	3/8	10+0.1-0.7	16.9~18.1	20.6~22.2	44.5	178	180	1.16
902-13-4SP	13 1/2		13+0.5-0.7	19.4~21	23.8~25.4	41.5	160	230	1.28
902-16-4SP	16 5/8		16+0.7-0.5	23~24.6	27.4~29	35	140	250	1.36
902-19-4SP	19 3/4		19+0.8-0.4	27.4~29	31.4~33	35	140	300	1.59
902-25-4SP	25 1		25+1.4-0	34.5~36.1	38.5~40.9	28	112	340	1.94
902-32-4SP	32 1-1/4		32+1.0-0.6	45~47	49.2~52.4	21	84	460	2.67
902-38-4SP	38 1-1/2		38+1.3-0.3	51.4~53.4	55.6~58.8	18.5	74	560	3.68
902-51-4SP	51 2		51+1.0-0.6	64.3~66.3	68.2~71.4	16.5	66	660	4.76

Maylead Group was started since 2001. Our mother business was manufacturing coated sand for the casting industry. Then upon the customers' requirement, we started the manufacturing of hydraulic hoses for industry application since 2006.

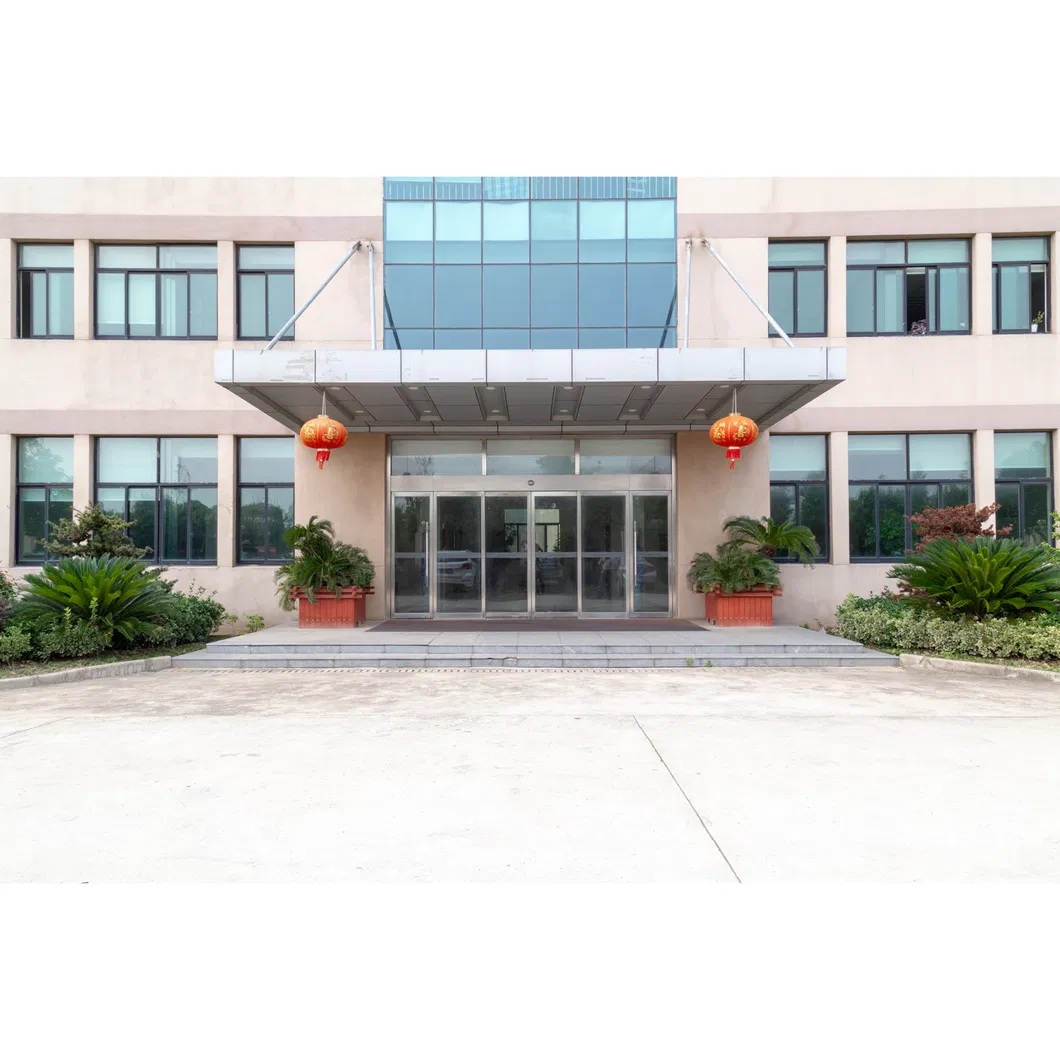

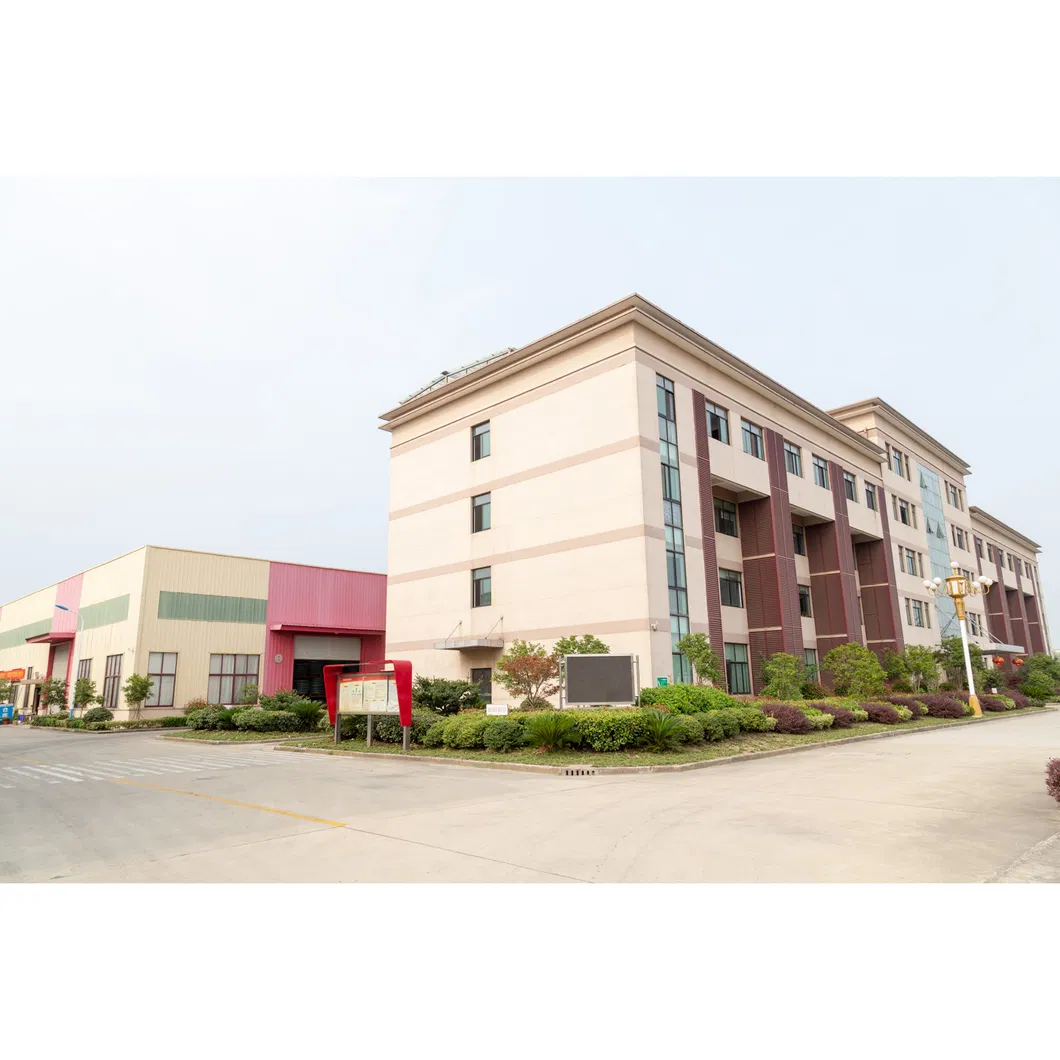

With the company development, MAYLEAD invested more than 12 million us dollars to build the new factory in Nantong Haimen City. It is a beautiful coastal city, which is also within 100km from the international economy center Shanghai.

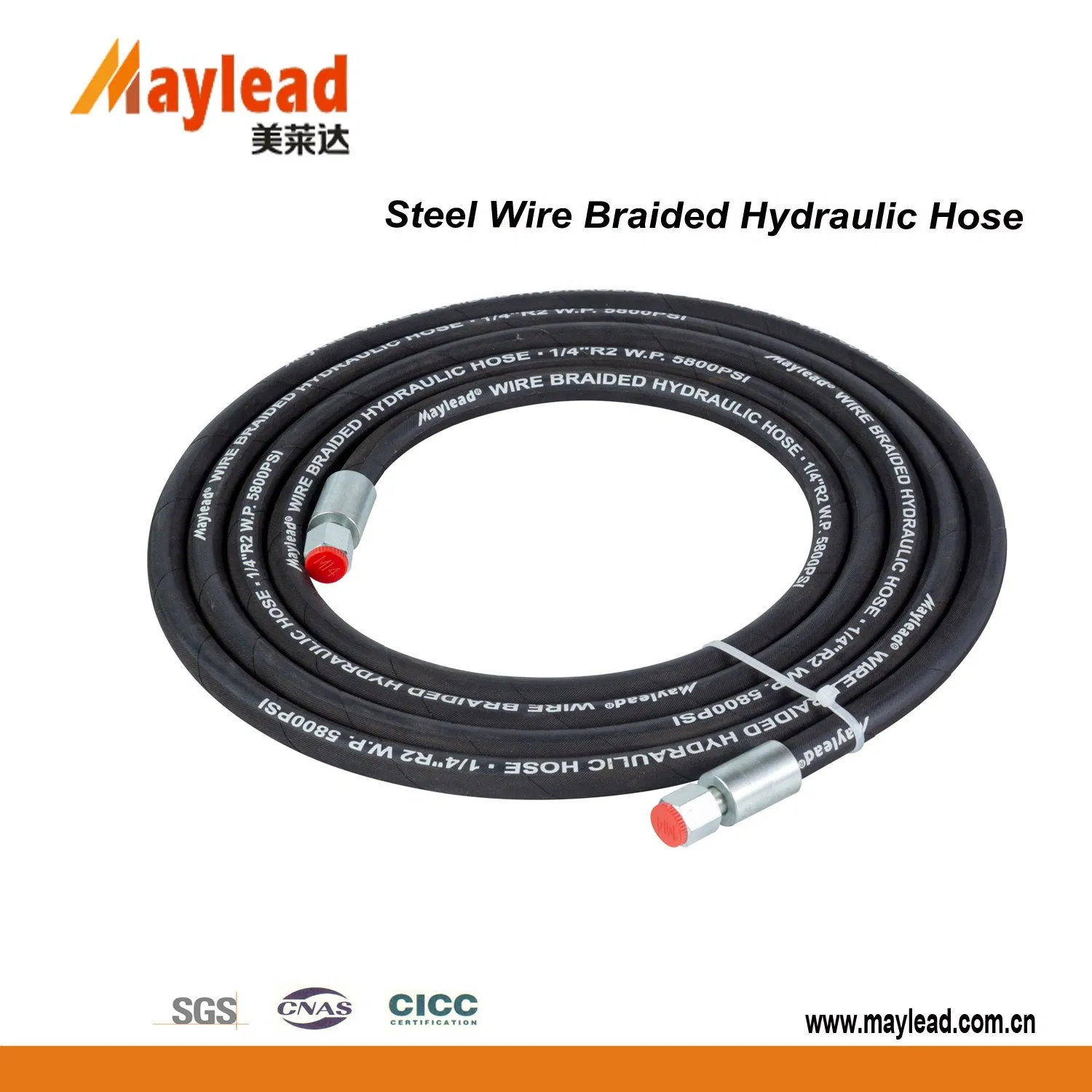

MAYLEAD focuses on the professional production and R&D of steel wire braided hose, steel wire spiral rubber hose, fiber braided hose and hose assembly. MAYLEAD has advanced production equipment, advanced manufacturing technology, and strict QC system. What's more, in order to upgrade the management, MAYLEAD has passed the "Environmental management system", "Quality Management System", "Occupational Health &Safety Management System "certified by CICC& IAF&CNAS. Also MAYLEAD has got more than 15 patents, therefore MAYLEAD is granted as a high new technology enterprise by the government.
3804 3/2" Hydraulic Steel Wire Spiral Rubber Hose Q/Mld02

MAYLEAD insists to provide customers with the high quality goods, on time customer support. Our products have been sold widely domestically especially in top ranking industry companies, and foreign countries such as East Europe, Russia, Southeast Asia etc. We have gained satisfaction from our clients home and abroad.
MAYLEAD takes "high quality, innovation, integrity management, keep improving" as the enterprise purpose, we sincerely cooperate with all our clients worldwide and to create more brilliant future together with our clients!
3804 3/2" Hydraulic Steel Wire Spiral Rubber Hose Q/Mld02

Q&A
1. Q: How long after the order can ship?

A: We confirm the production time of 10 to 20 days after the order,
If you have urgent goods, we will check how to help you receive the goods more quickly

2. Q: What kind of freight do you offer?
A: By ship/by train/by plane

3. Q: How do you ensure the safety of your products during transportation?
A: We'll pack them one by one, using bubble wrap in combination with the cartons

4. Q: What is our advantage?
A: We provide customized services, Dimensions and filaments are fabricated to meet your requirements.
