5/16 Inch Soft Flexible En854 3te Black Wrap Surface Fiber Carbon Tube Hose
CONSTRUCTION:Inner tube:Oil-resistant synthetic rubberReinforcement: 1layer or 2layer braid of fiber reinforcementOuter cover: Abrasion and ozone-resistant synthetic rubberTemp. range: -40°C to + 100°C APPLICATIONS:Fiber-reinforced SAE 100R3 General Purpose/Hydraulic Hose is recommen......
Send Inquiry
Product Description
CONSTRUCTION:
Inner tube:Oil-resistant synthetic rubber
Reinforcement: 1layer or 2layer braid of fiber reinforcement
Outer cover: Abrasion and ozone-resistant synthetic rubber
Temp. range: -40°C to + 100°C
APPLICATIONS:
Fiber-reinforced SAE 100R3 General Purpose/Hydraulic Hose is recommended for hydraulic oil line, anti-freeze solutions or water.
Ideal for applications where steel wire is not desired.
SPECIFICATION SHEET:
STANDARD:SAE100R6/DIN EN854 1TE
| Product Number | Hose ID | O.D. | Max W.P. | Min B.P. | Min B.R. | Weight | ||
| mm | in | mm | Bar | psi | psi | mm | kg/m | |
| R6-05 | 4.8 | 3/16" | 11.1 | 34 | 493 | 1972 | 51 | 0.1 |
| R6-06 | 6.4 | 1/4" | 12.7 | 28 | 406 | 1624 | 64 | 0.13 |
| R6-08 | 8 | 5/16" | 14.3 | 28 | 406 | 1624 | 76 | 0.15 |
| R6-10 | 9.5 | 3/8" | 15.9 | 28 | 406 | 1624 | 76 | 0.18 |
| R6-13 | 12.7 | 1/2" | 19.8 | 28 | 406 | 1624 | 102 | 0.26 |
| R6-16 | 16 | 5/8" | 23 | 24 | 348 | 1392 | 125 | 0.31 |
| R6-19 | 19 | 3/4" | 26.6 | 17 | 247 | 988 | 140 | 0.47 |
| R6-25 | 25.4 | 1" | 35.2 | 17 | 247 | 988 | 150 | 0.71 |
STANDARD:SAE100R3/DIN EN854 3TE
| Product Number | Hose ID | O.D. | Max W.P. | Min B.P. | Min B.R. | Weight | ||
| mm | in | mm | Bar | psi | psi | mm | kg/m | |
| R3-05 | 4.8 | 3/16" | 12.5 | 103 | 1247 | 5976 | 70 | 0.14 |
| R3-06 | 6.3 | 1/4" | 14.5 | 86 | 1247 | 4988 | 76 | 0.18 |
| R3-08 | 8 | 5/16" | 17.5 | 83 | 1204 | 4816 | 102 | 0.25 |
| R3-10 | 9.5 | 3/8" | 18.7 | 78 | 1131 | 4524 | 102 | 0.27 |
| R3-13 | 12.7 | 1/2" | 23.5 | 69 | 1000 | 4000 | 127 | 0.39 |
| R3-16 | 16 | 5/8" | 26.9 | 60 | 870 | 3480 | 140 | 0.55 |
| R3-19 | 19 | 3/4" | 31.6 | 52 | 754 | 3016 | 152 | 0.67 |
| R3-25 | 25.4 | 1" | 37.8 | 39 | 566 | 2264 | 203 | 0.81 |
| R3-32 | 32 | 1 1/4" | 44 | 26 | 377 | 1508 | 254 | 0.92 |

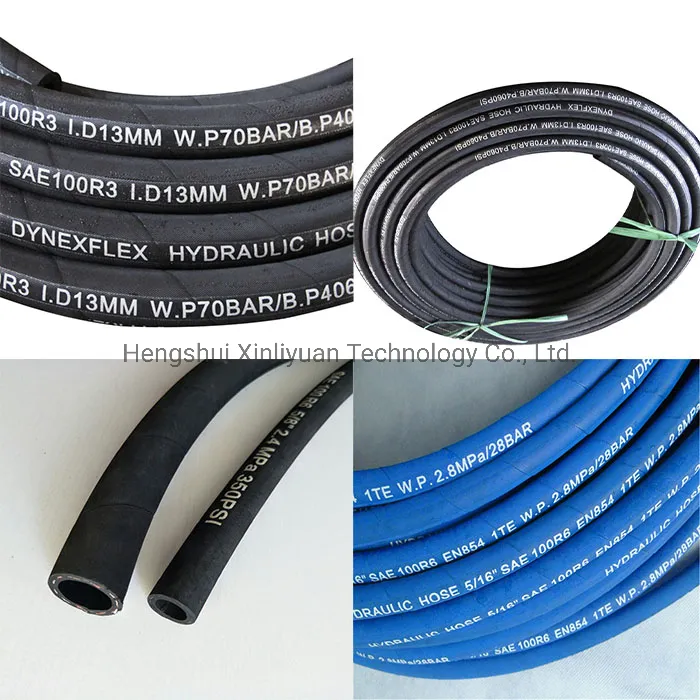

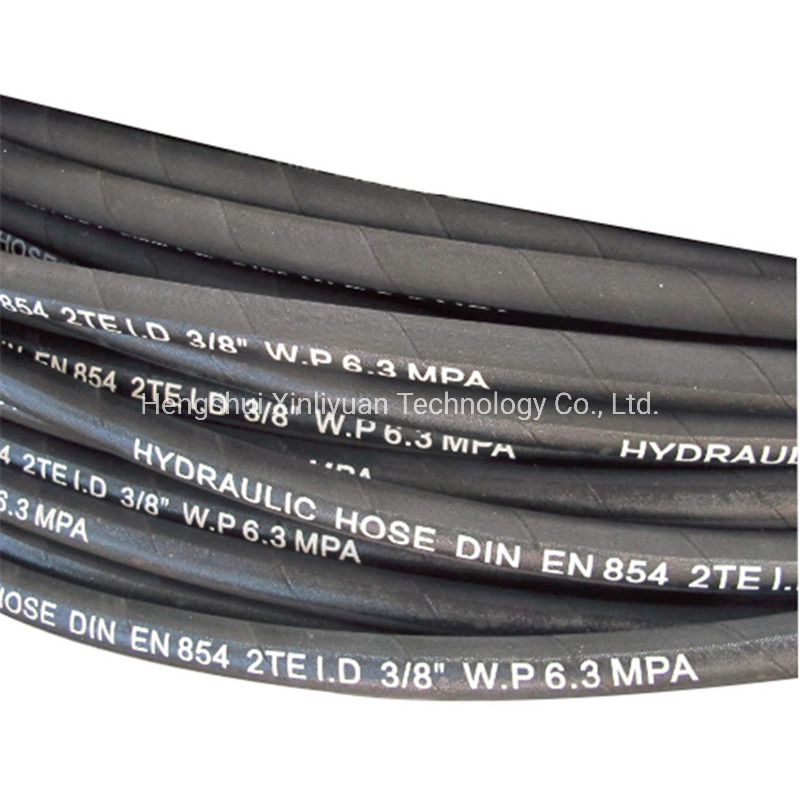

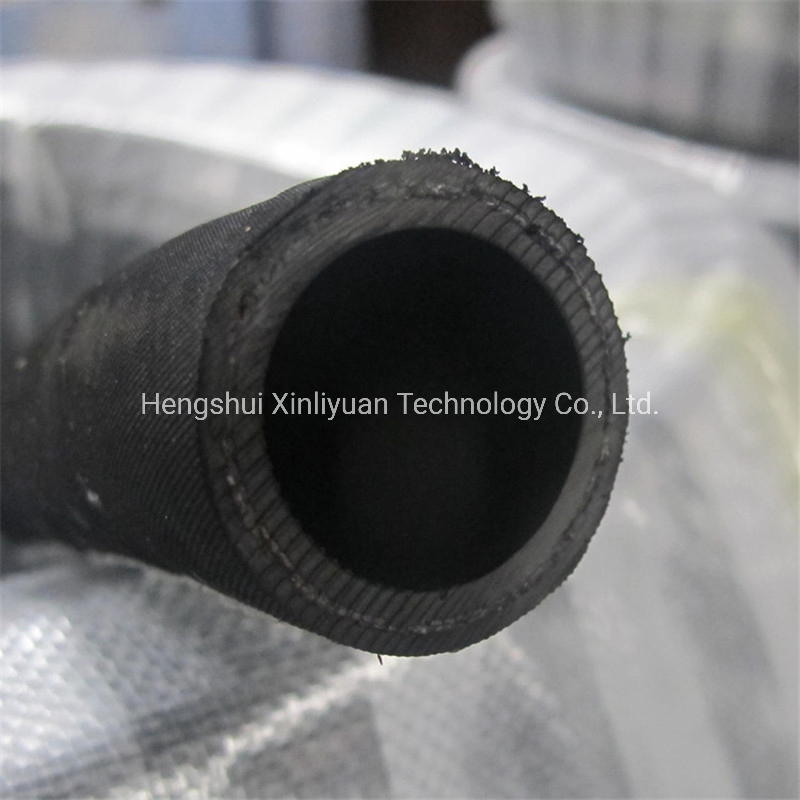

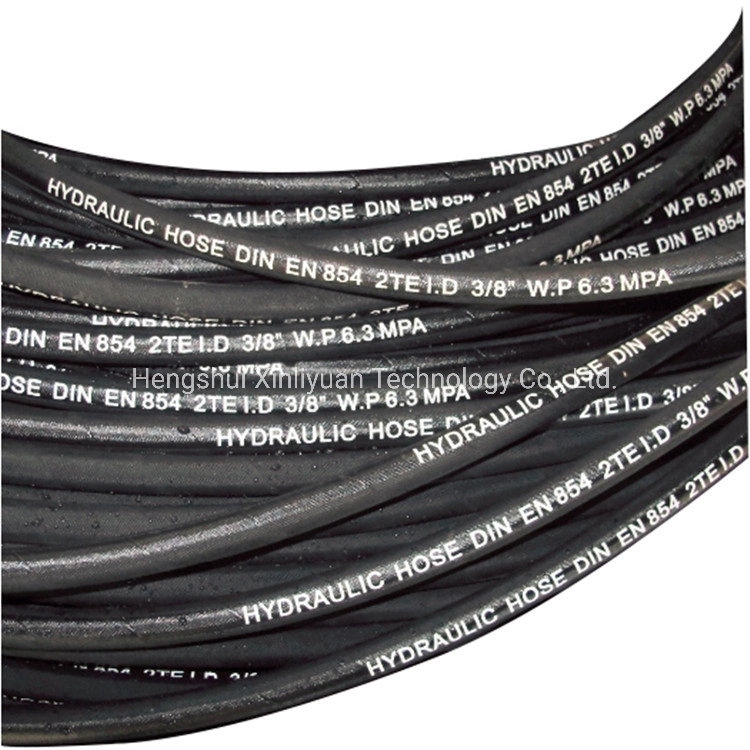

PRODUCT PICTURE:

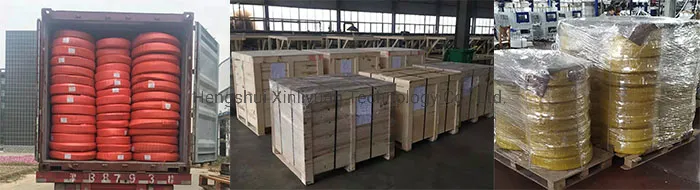

PACKING AND SHIPPMENT:

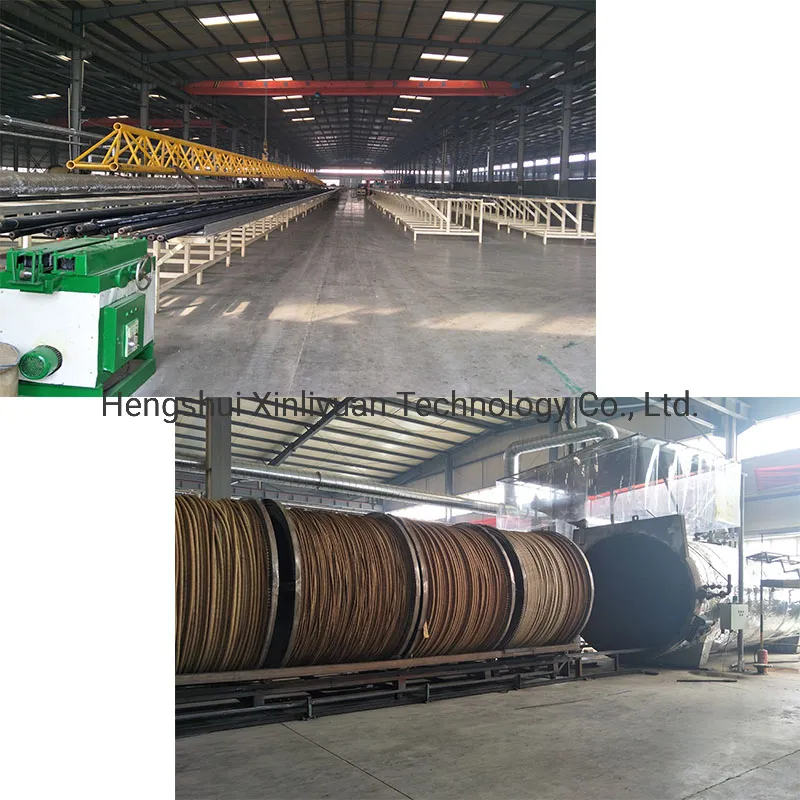

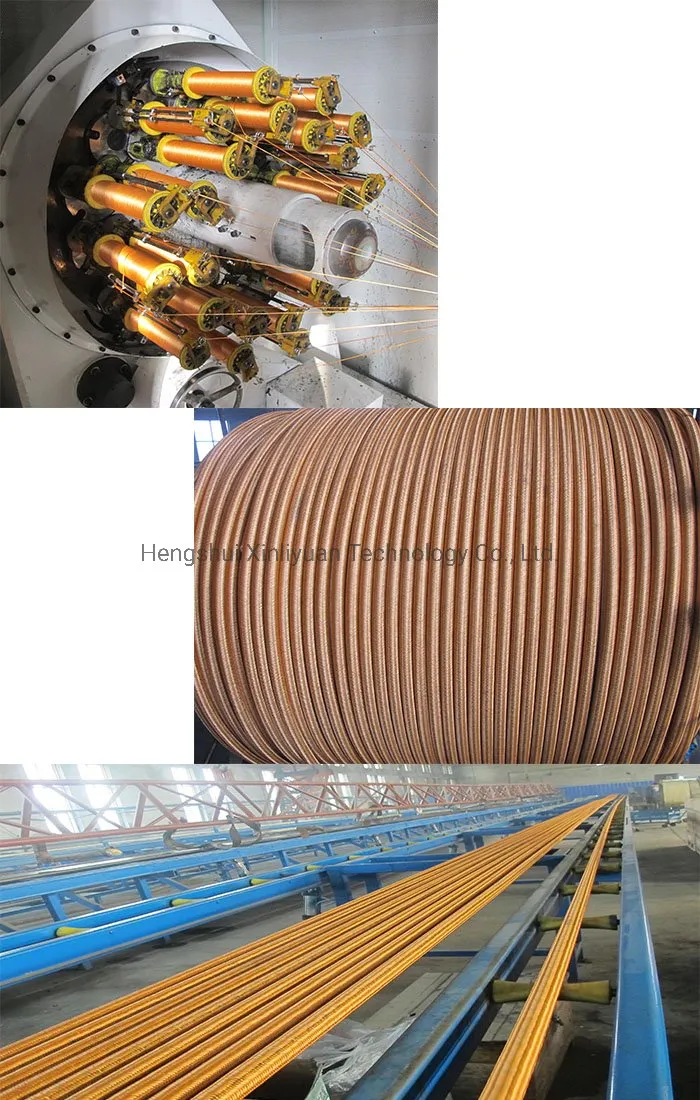

WORKSHOP:

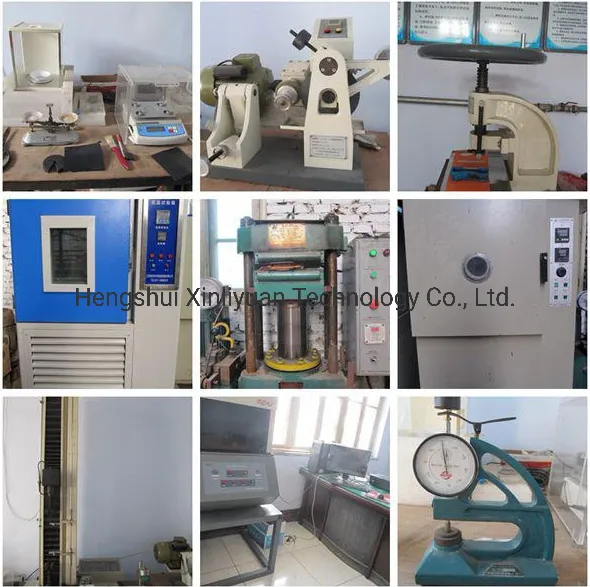

QUALITY CONTROL:
FAQ:
Q1:Can I get some hydraulic hose samples?
A:Free sample is available for you,only express charge will be paid by you.
Q2:How does your factory do regarding quality control?
A:Quality is priority.we always take great importance to quality control from begin to the end.
Q3: Are you a factory or trading company?
A:We are a factory with rich export experience and assume first-hand, high quality and competitive price.
Q4:How about your delivery time?
A:Usually,it will take 10-15days after received your advanced payment.Customized product will be talking with each other.
Q5: What is your terms of payment ?
A:T/T 30% as deposit,70% before delivery.we will show you the photos of the products and packages before you pay balance
