Anti-Weathering DN2*5mm 63MPa Microbore Flexible Hydraulic Test Point High Pressure Micro Hose Length Testing Pressures
Recommended For the nominal diameter of miniature high-pressure hose series HF are 2mm and 3mm. With a maximum working pressure 64Mpa, the miniature high-pressure hose is used in hydraulic systems for testing pressure and conducting the fluid medium. The miniature high-pressure hose assembly series ......
Send Inquiry
Product Description
Recommended For
the nominal diameter of miniature high-pressure hose series HF are 2mm and 3mm. With a maximum working pressure 64Mpa, the miniature high-pressure hose is used in hydraulic systems for testing pressure and conducting the fluid medium. The miniature high-pressure hose assembly series HF is used in conjunction with the couplings.
Tube: PA
Reinforcement: Fiber or Kevlar
Cover: PA or PU
Temperature Range
-40ºF to +250ºF (-40ºC to +121ºC)
Specifications
| Item Code | I.D. | O.D. | W.P. | B.P. | Min bending radius | Length |
| mm | mm | MPa | MPa | mm | m | |
| TPH-0240 | 2 | 5 | 40 | 120 | 20 | 100 |
| TPH-0263 | 2 | 5 | 40 | 120 | 20 | 100 |
| TPH-0363 | 3 | 6 | 63 | 160 | 25 | 100 |
| TPH-0450 | 4 | 8 | 50 | 150 | 35 | 100 |

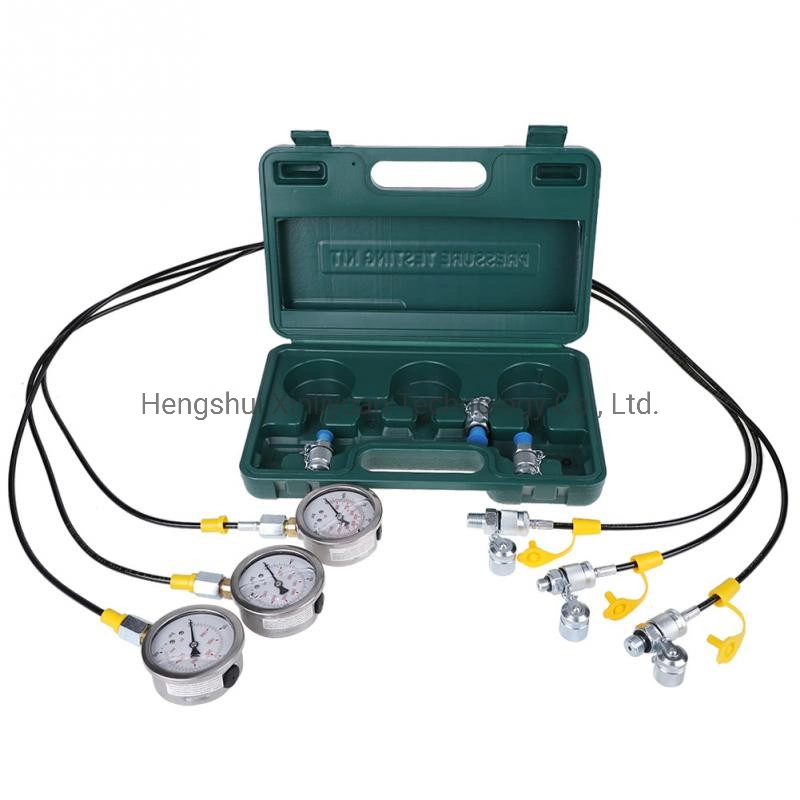

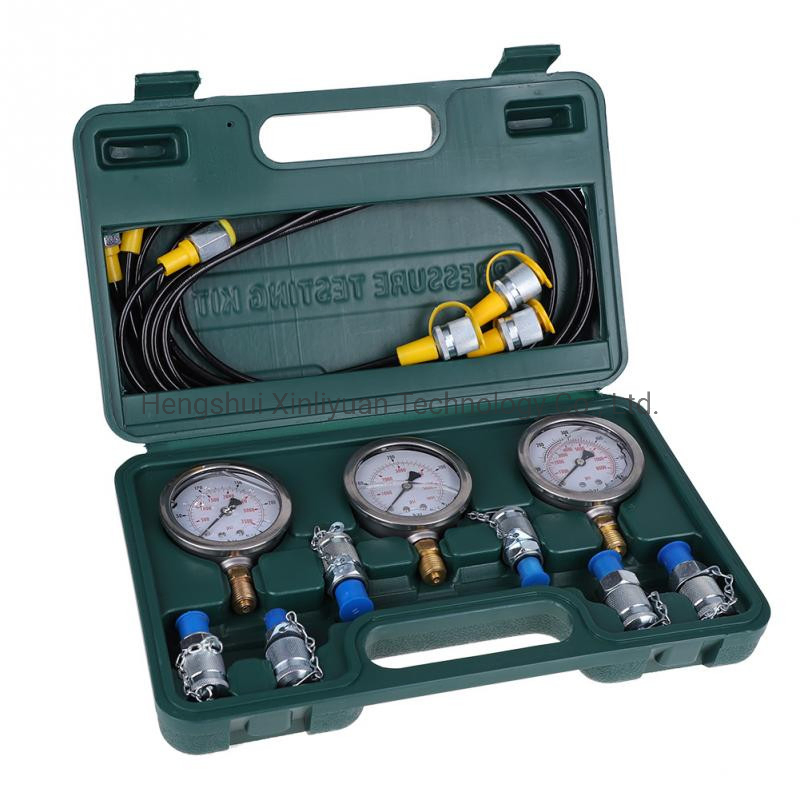

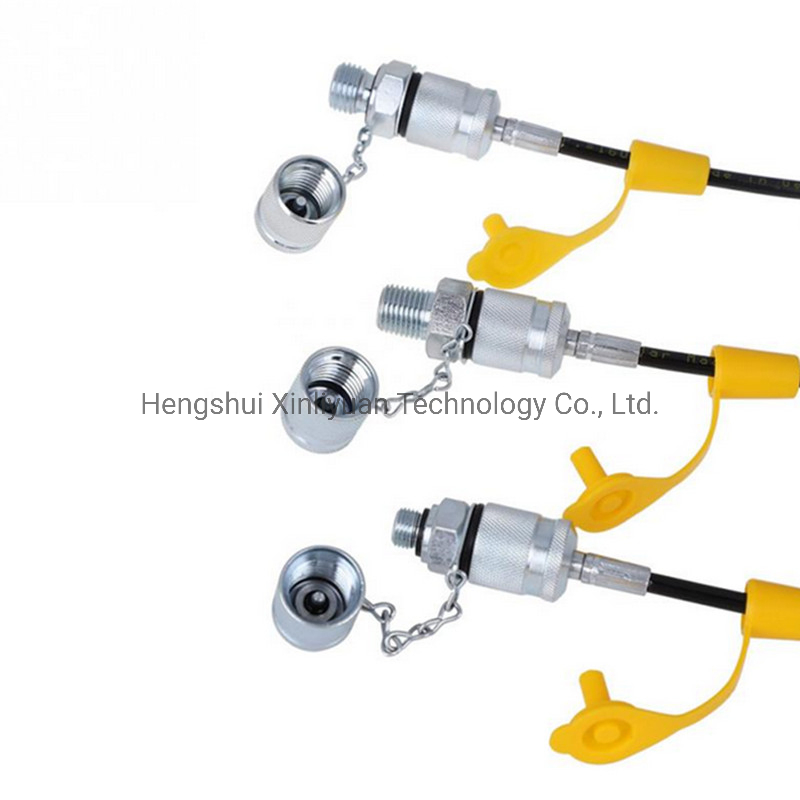

PRODUCT PICTURE:
PACKING AND SHIPPMENT:

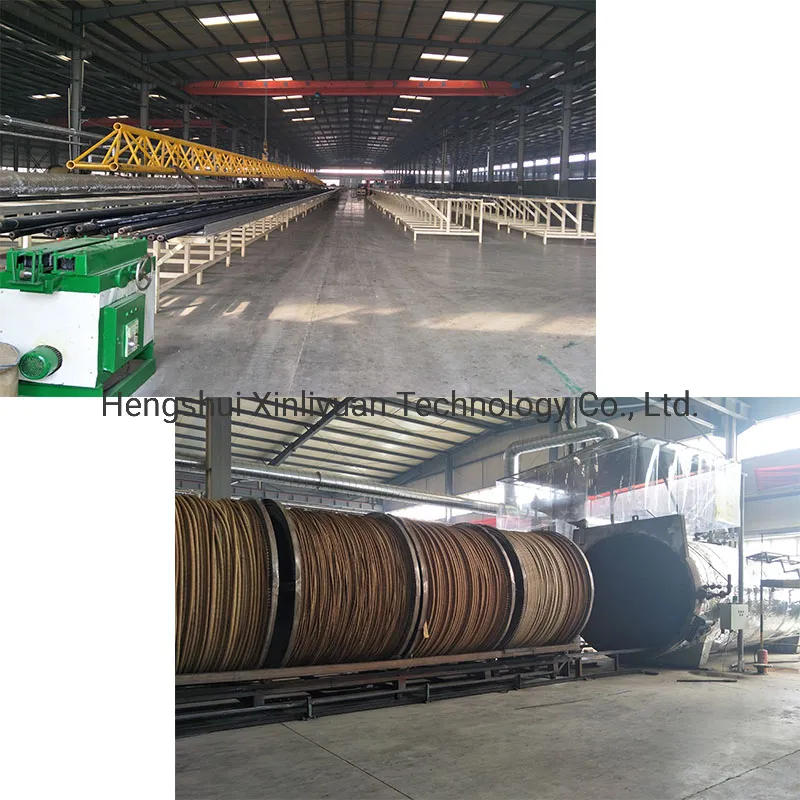

WORKSHOP:
QUALITY CONTROL:
FAQ:
Q1:Can I get some test hose samples?
A:Free sample is available for you,only express charge will be paid by you.
Q2:How does your factory do regarding quality control?
A:Quality is priority.we always take great importance to quality control from begin to the end.
Q3: Are you a factory or trading company?
A:We are a factory with rich export experience and assume first-hand, high quality and competitive price.
Q4:How about your delivery time?
A:Usually,it will take 10-15days after received your advanced payment.Customized product will be talking with each other.
Q5: What is your terms of payment ?
A:T/T 30% as deposit,70% before delivery.we will show you the photos of the products and packages before you pay balance
