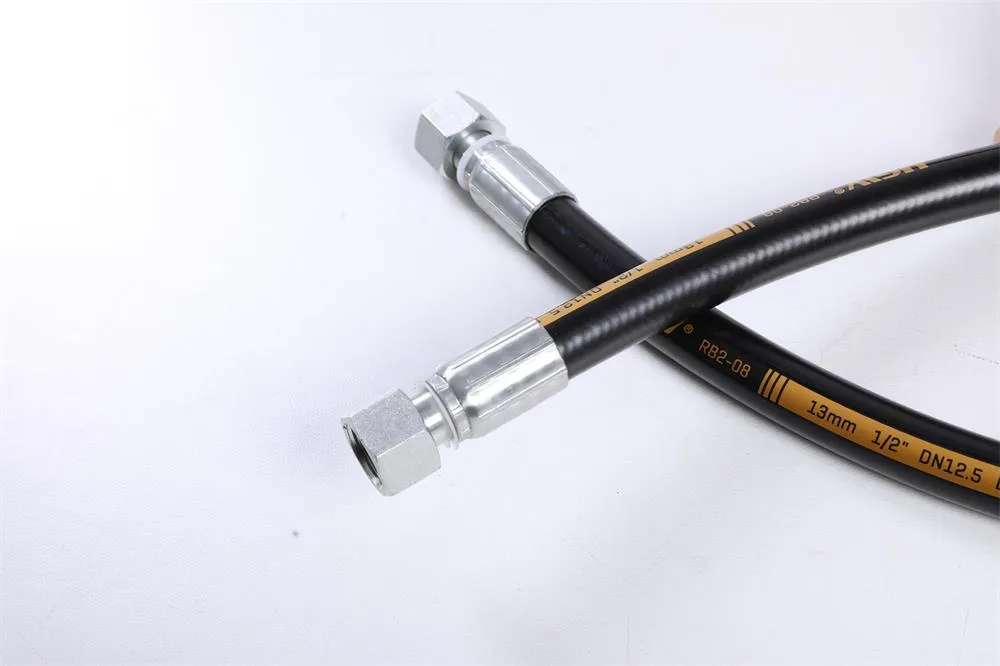

En853 2sn SAE100 R2 China High Quality Hydraulic Hose
EN853 2SN SAE100 R2 AT Inner tube: NitrileReinforcement: one braid of high-tensile steel wireCover: Black Neoprene BlendTemperature Range: -40°F to 212°F(-40ºCto 100ºC)App......
Send Inquiry
Product Description

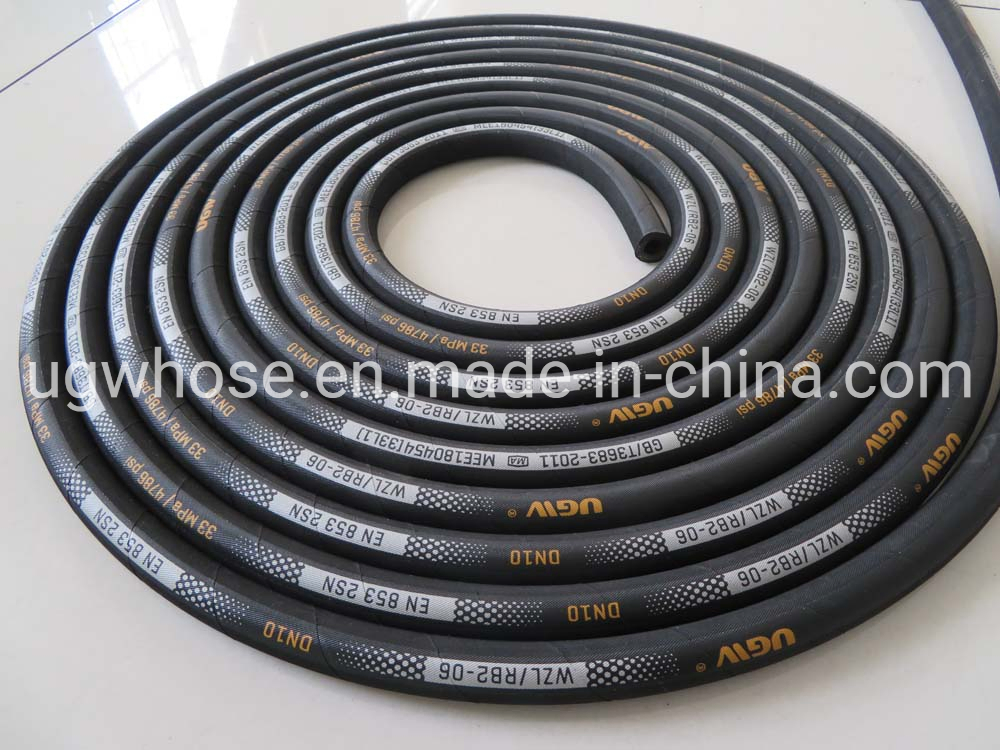

EN853 2SN SAE100 R2 AT
Inner tube: Nitrile
Reinforcement: one braid of high-tensile steel wire
Cover: Black Neoprene Blend
Temperature Range: -40°F to 212°F(-40ºCto 100ºC)
Application standards: EN853 1SN,GB3683.1 1SN,SAE J517 R1S,ISO 1436 1SN

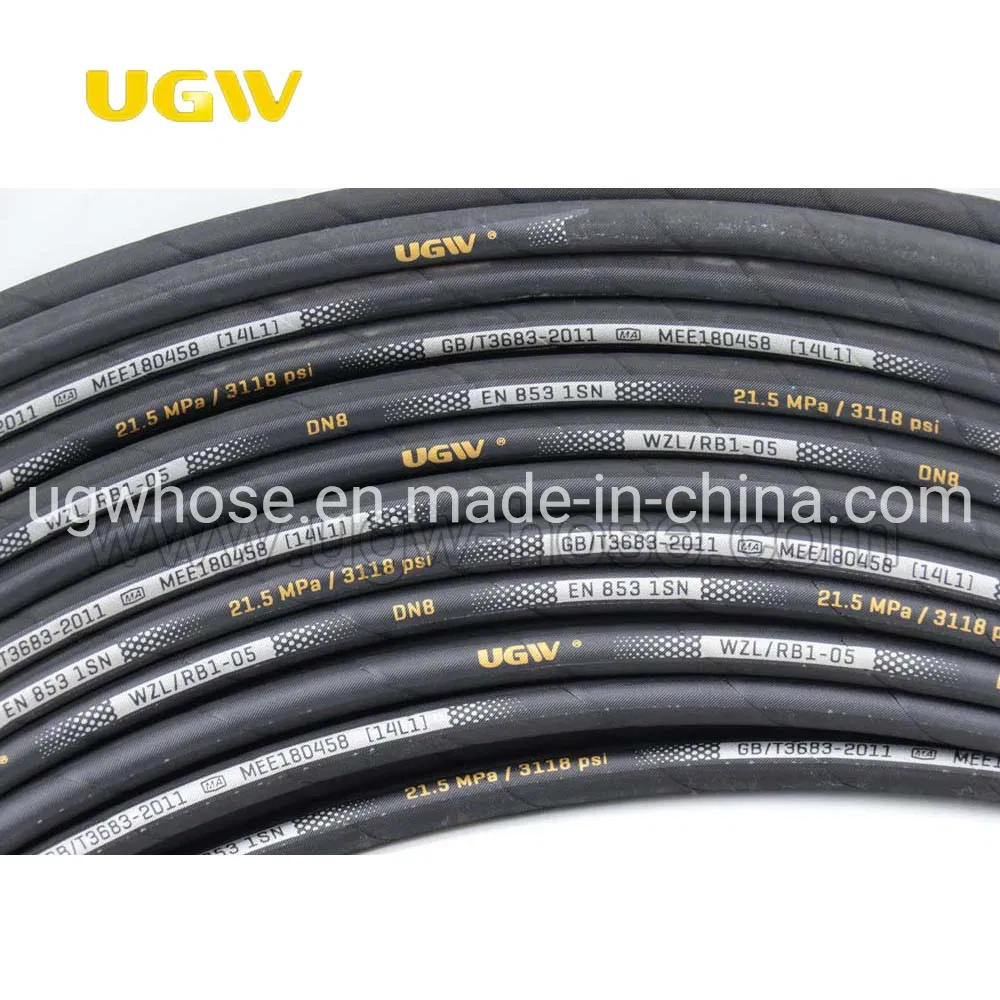

Branding: 1SN-16-25mm 1'' GB /T3683.1 SAE J517 EN853 W.P. 8.8Mpa
Reinforcement: one braid of high-tensile steel wire
Cover: Black Neoprene Blend
Temperature Range: -40°F to 212°F(-40ºCto 100ºC)
Application standards: EN853 1SN,GB3683.1 1SN,SAE J517 R1S,ISO 1436 1SN
Branding: 1SN-16-25mm 1'' GB /T3683.1 SAE J517 EN853 W.P. 8.8Mpa
Application:
Medium pressure hydraulic application including mobile, machine tool and agricultural application, using petroleum or water based hydraulic fluids.
SAE 100 R2 technical data
| Items number | Hose I.D. | Hose O.D. | Max W.P. | Min B.P | Min.B.R | Weight | ||
| in | mm | Mpa | psi | Mpa | psi | mm | Kg/m | |
| 2SN-3 | 3/16 | 14.1 | 41.5 | 6019 | 165 | 23930 | 90 | 0.27 |
| 2SN-4 | 1/4 | 15.7 | 40.0 | 5801 | 160 | 23204 | 100 | 0.34 |
| 2SN-5 | 5/16 | 17.3 | 35.0 | 5076 | 140 | 20304 | 115 | 0.39 |
| 2SN-6 | 3/8 | 19.7 | 33.0 | 4786 | 132 | 19144 | 130 | 0.49 |
| 2SN-8 | 1/2 | 23.0 | 27.5 | 3989 | 110 | 15956 | 180 | 0.59 |
| 2SN-10 | 5/8 | 26.2 | 25.0 | 3625 | 100 | 14500 | 200 | 0.71 |
| 2SN-12 | 3/4 | 30.1 | 21.5 | 3118 | 86 | 12472 | 240 | 0.89 |
| 2SN-16 | 1 | 38.9 | 16.5 | 2393 | 65 | 9430 | 300 | 1.37 |
| 2SN-20 | 1 1/4 | 49.5 | 12.5 | 1813 | 50 | 7252 | 420 | 2.27 |
| 2SN-24 | 1 1/2 | 55.9 | 9.0 | 1305 | 36 | 5220 | 500 | 2.44 |
| 2SN-32 | 2 | 68.6 | 8.0 | 1160 | 32 | 4640 | 630 | 3.00 |

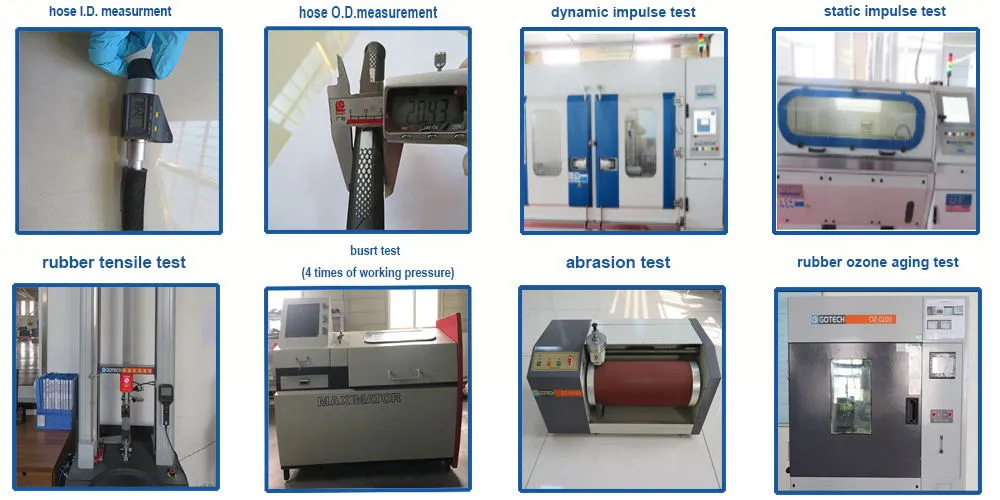

Quality control:

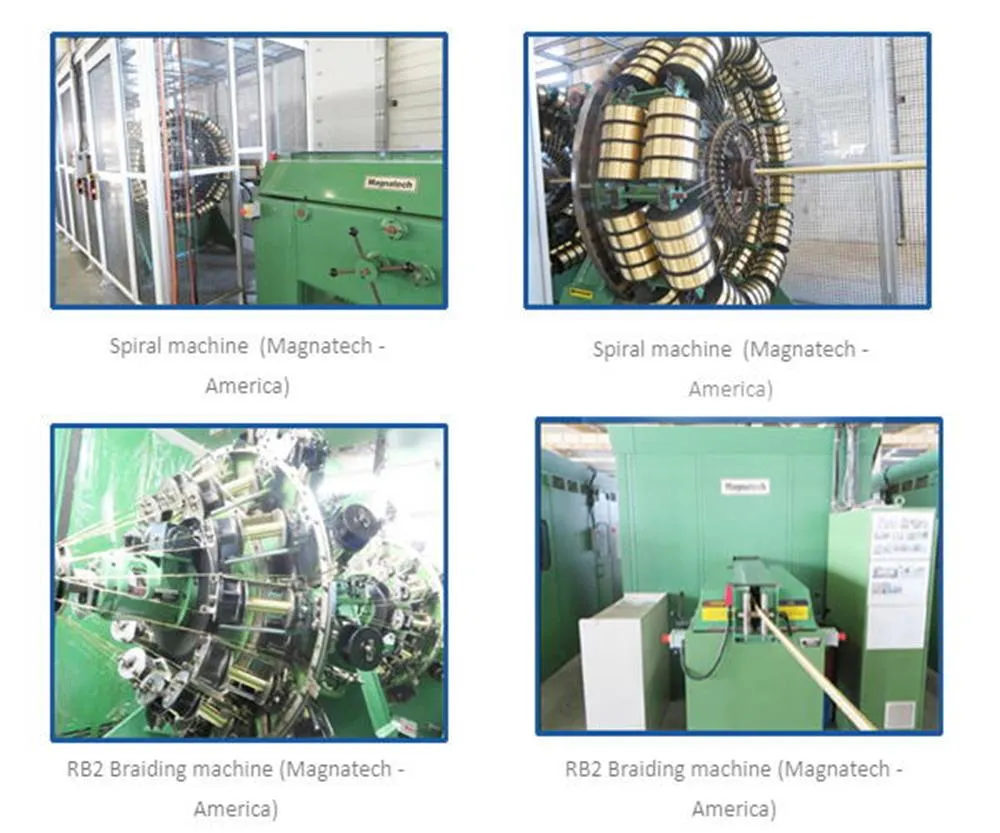

Our Lab:

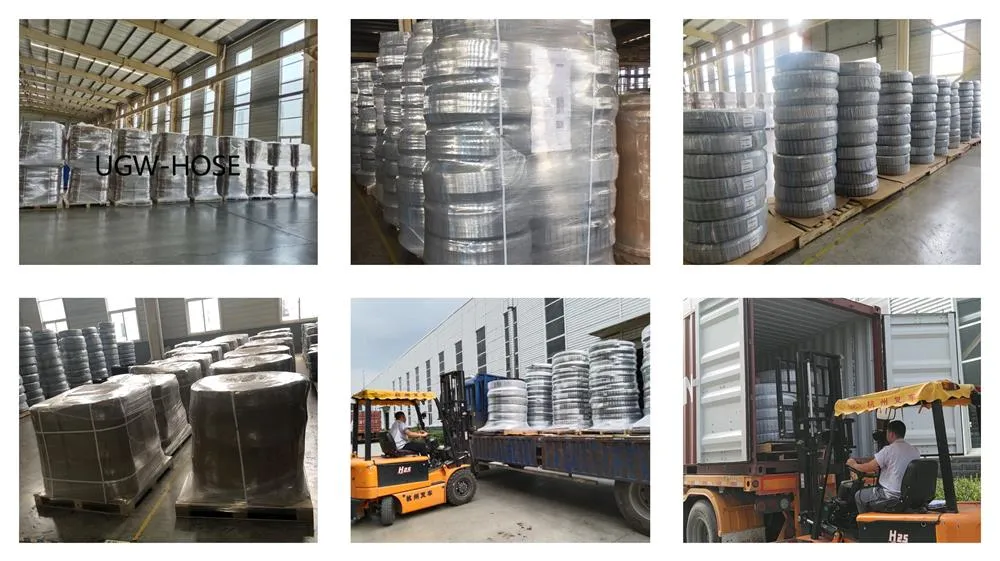

Packaging & Shipment:
Application:
Our Services
1.We can offer OEM Services
2.We can provide FREE SAMPPLE for our customers

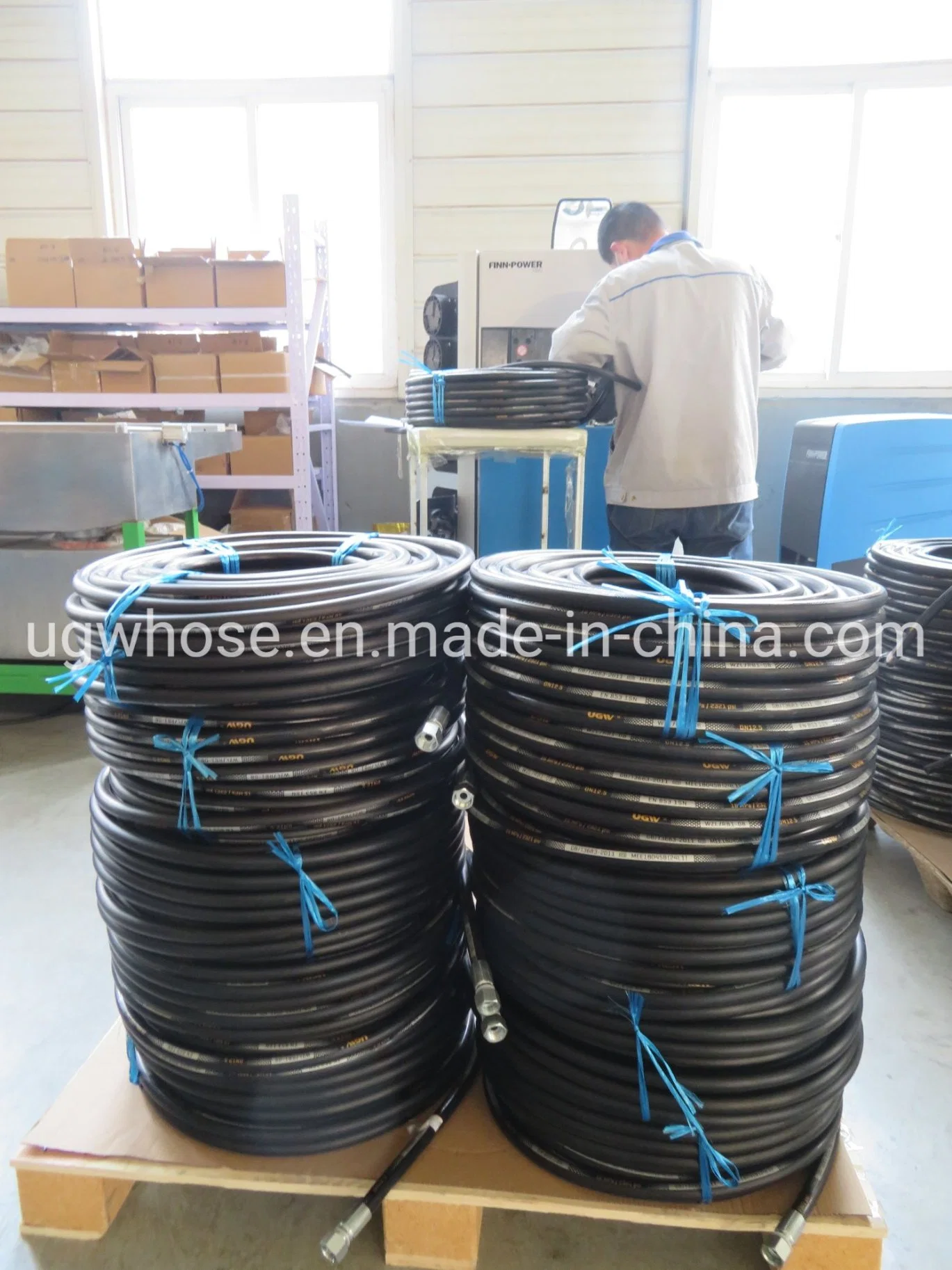

3.We can crimp hose assembly for our customers.
4.We welcome clients to visit our factory leading to better understanding of our production.
