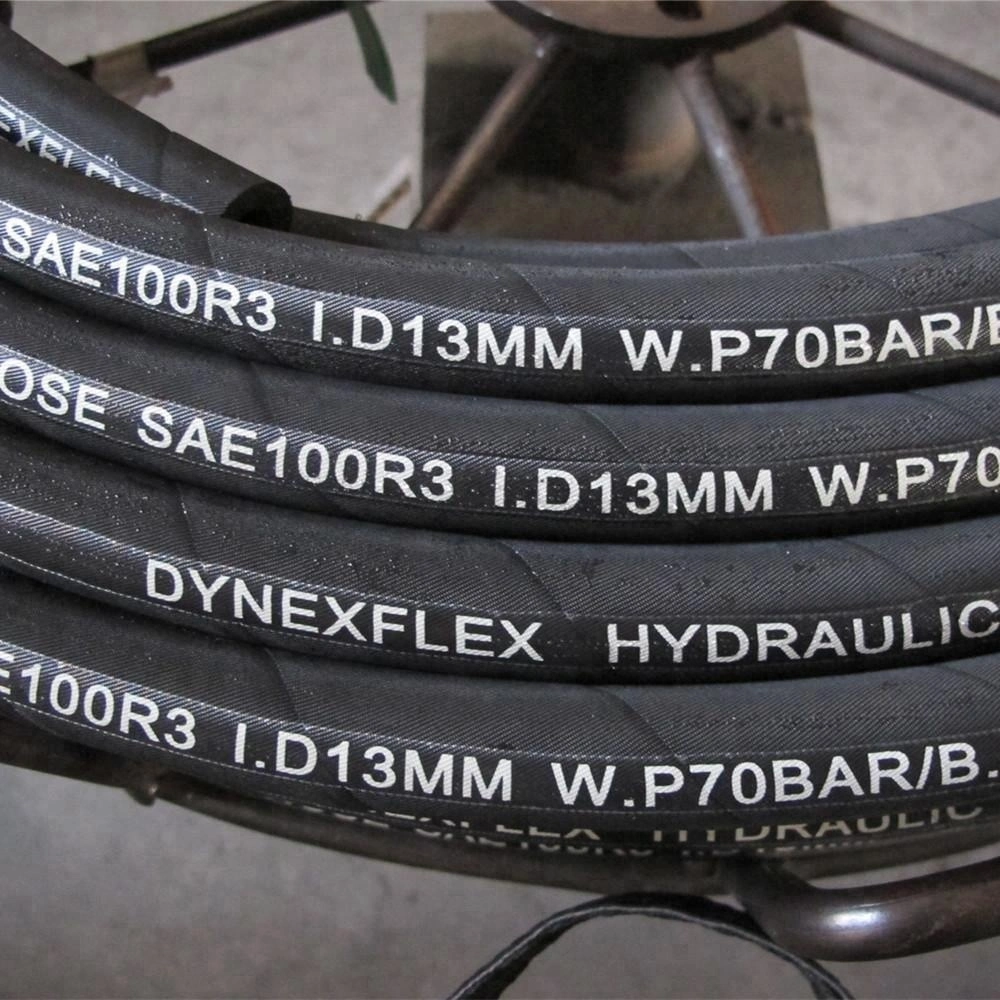

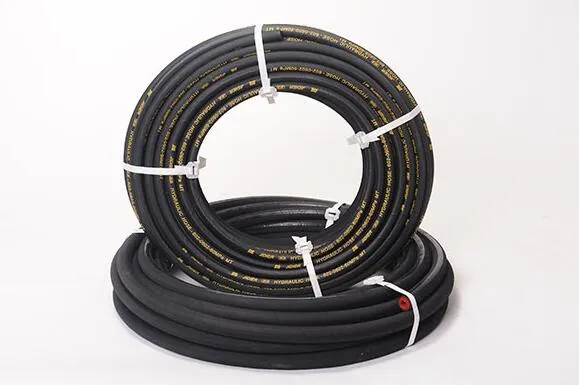

En854 SAE100 R3 1/2 Fibre Braiding Hydraulic Rubber Hose
Our main products: High pressure hydraulic hose, steel wire braid hose, steel wire spiral hose, Fabric braid hose, steam hose, sandblasting hose, Industrial and auto hose, special function hose, steel wire frame (suction) hose, metal hoseand assembly, etc. Kind of rubber products. We can customize r......
Send Inquiry
Product Description
KEY PERFORMANCE
EN/DIN and new SAE rated working pressures
Wide range of fluid compatibility
Appearance: Wrap( I.D less than 25.4mm smooth cover)
Branding: Printing and indelible branding with embossed technology
Colour: Black,red,blue,yellow,green,gray
Continuous service temperature range: -40°f / +212°; f-40°c / +100°c
Max operating temperature: 212°f 100°c for oil,149°f 65°c for air, water and water based fluids

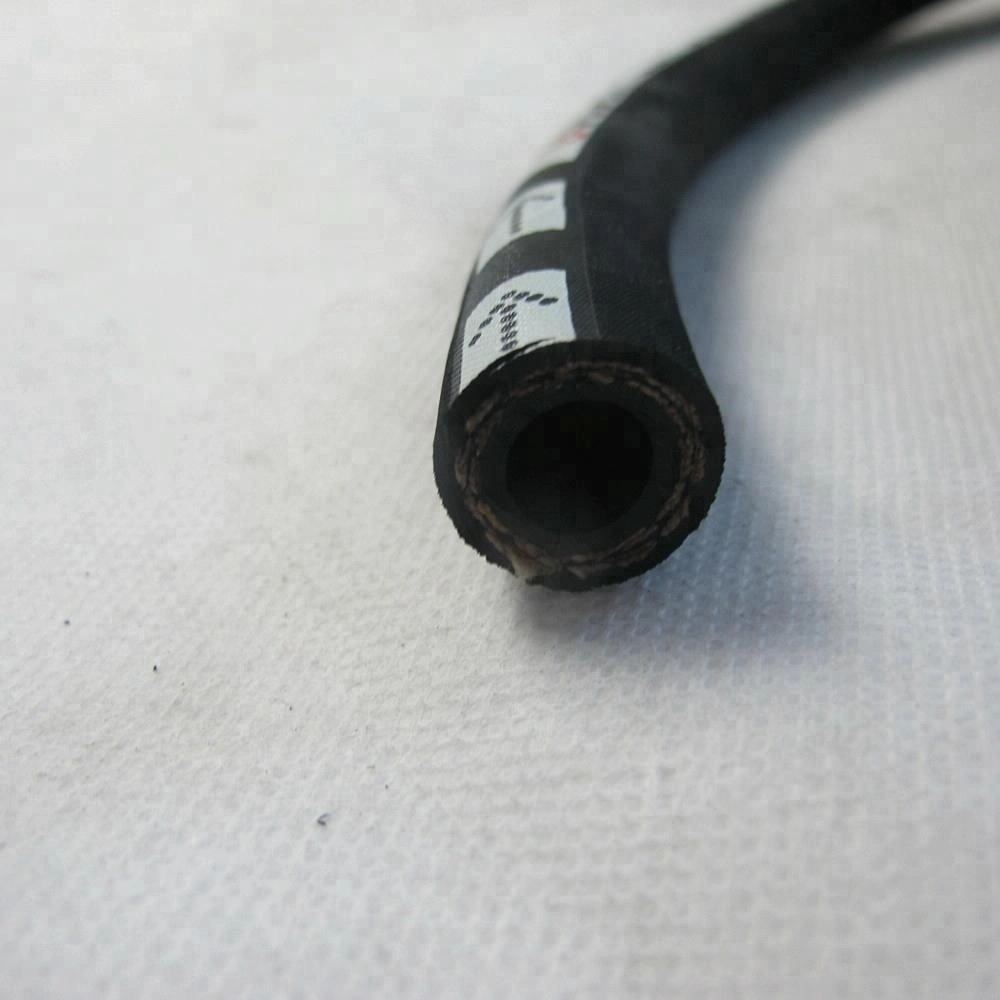

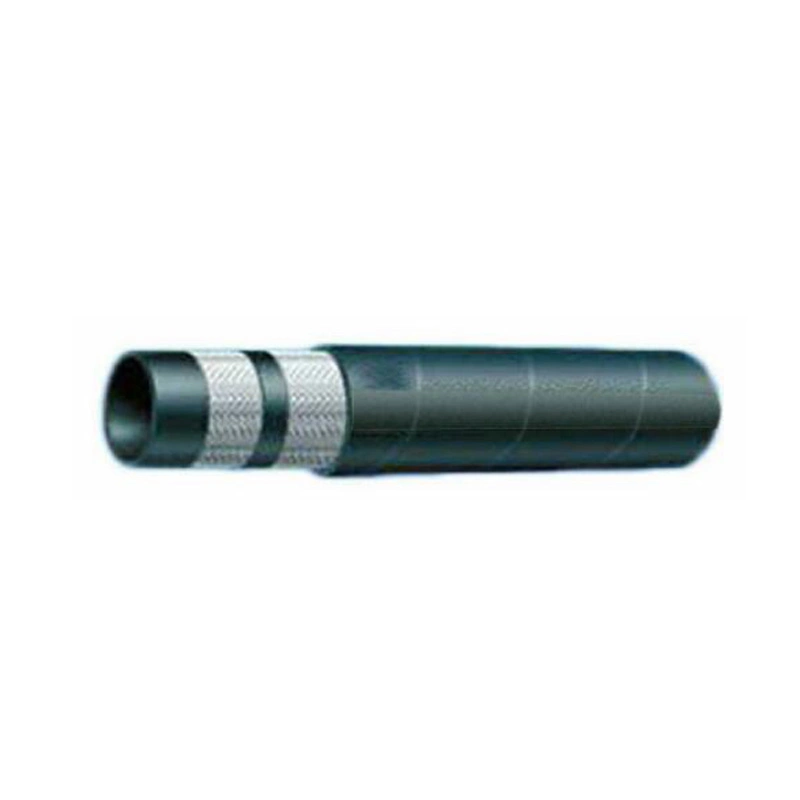

Reinforcement: Two high resistance textile braids
Cover: Environment resistant synthetic rubber
Applicable specs: EN 854 3TE- EN 854 R3 - SAE 100 R3 - ISO 4079-1 R3
APPLICATIONS
Medium pressure hydraulic applications, hoisting, hydraulic transmissi
Mineral and biological oils, ASTM 1, ASTM 3, polyglycol based oils, water, water oil emulsions.
| Model no. | HOSE SIZE I.D | R.O.D | O.D | MAX W.P | MIN B.P | MIN B.R | W.T | ||||
| DN | dash | inch | mm | mm | bar | psi | bar | psi | mm | Kg/m | |
| TB R3 5 | 5 | -3 | 3/16" | - | 13.5 | 105 | 1520 | 420 | 6090 | 75 | 0.16 |
| TB R3 6 | 6 | -4 | 1/4" | - | 14.5 | 87 | 1260 | 350 | 5075 | 75 | 0.18 |
| TB R3 8 | 8 | -5 | 5/16" | - | 16.8 | 84 | 1220 | 335 | 4860 | 100 | 0.27 |
| TB R3 10 | 10 | -6 | 3/8" | - | 18.2 | 110 | 1590 | 440 | 6380 | 70 | 0.23 |
| TB R3 12 | 12 | -8 | 1/2" | - | 21.5 | 93 | 1340 | 372 | 5390 | 85 | 0.29 |
| TB R3 16 | 16 | -10 | 5/8" | - | 25.6 | 80 | 1160 | 320 | 4640 | 105 | 0.39 |
| TB R3 19 | 19 | -12 | 3/4" | - | 28.8 | 70 | 1010 | 280 | 4060 | 130 | 0.45 |
| TB R3 25 | 25 | -16 | 1" | - | 35.4 | 55 | 790 | 220 | 3190 | 150 | 0.57 |
| TB R3 31 | 31 | -20 | 1,1/4" | - | 42.5 | 45 | 650 | 180 | 2610 | 190 | 0.73 |
| TB R3 38 | 38 | -24 | 1,1/2" | - | 49.4 | 40 | 580 | 160 | 2320 | 240 | 0.93 |
| TB R3 51 | 51 | -32 | 2" | - | 62.2 | 33 | 470 | 132 | 1910 | 300 | 1.30 |
Our Products Range:
1. Hydraulic Hose
Steel wire braided hose, Steel wire spiral hose, Texible braided hose
2. Industrial Hose:
Smooth(Wrapped) Air/Water/Oil/Gas/Lpg hose, Welding hose, Oxygen hose, Acetylene hose,
Lpg hose/Propane hose, Twin hose, Oil/Water suction and discharge hose, Steam hose, Sandblast hose,
Large diameter hose etc.
3. Automotive Hose
Air brake / condition hose, Power steering hose, Fuel oil hose,
4. PVC Hose
5. Hose Fitting / Coupling / Ferrule
6. Hose Machine

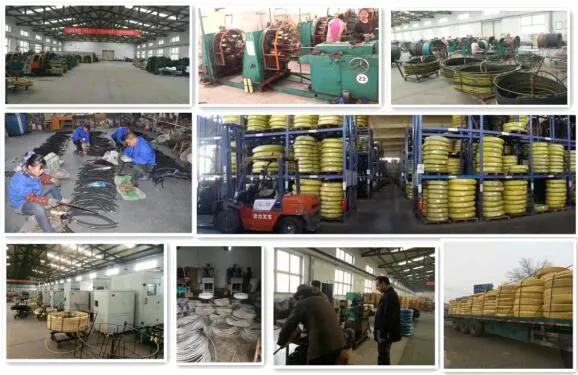

Our factory:
≡ FAQ
Q: Do you produce smooth or cloth wrapped cover?
A: Yes, we can produce both cover, which depends on customer's request.
Q: Can you produce product with my own brand?
A: Yes, OEM or ODM is warmly welcome by our company. Hope we both parties will benefit a lot through the cooperation.
Q:Could we get free samples?
A: Yes. We can provide the free sample for you
Q: Does your product have different color hose?
A: Yes, we currently provide black, grey, red, blue and yellow.
Q:Could you crimp hose?
A: Yes, we can crimp hose assembly for our customers
Q: How long does my order take to be delivered?
A: It usually takes 5 to 30 days, which generally depends on the quantity of your order and our storage.
