High Pressure Flexible Water Rubber Discharge Industrial Hose
High Pressure Flexible Water Rubber Discharge Industrial HoseConstruction:Oil suction hoseTube: NBR synthetic rubber black smoothOil suction hose Reinforcement: Textile braided high tensile synthetic yarn embedded steel wire helixOil suction hose Cover: black neoprene rubber, wrapped oil, ozone, wea......
Send Inquiry
Product Description
High Pressure Flexible Water Rubber Discharge Industrial Hose
Oil suction hoseTube: NBR synthetic rubber black smooth
Oil suction hose Reinforcement: Textile braided high tensile synthetic yarn embedded steel wire helix
Oil suction hose Cover: black neoprene rubber, wrapped oil, ozone, weathe, abrasion resistant
Oil suction hose Applications: Wide range service in oil system like diesel fuel and oil related industrial etc.
Temperature: -35C + 80C
Branding: As request
Length: 20, 40, 50, 61M
Packing: Weaving belt
| ID | OD | WP | BP | |
| inch | mm | mm | bar | bar |
| 3/4" | 19.0 | 32 | 15 | 45 |
| 1" | 25.4 | 35 | 15 | 45 |
| 1-1/4" | 31.8 | 46 | 15 | 45 |
| 1-1/2" | 38.1 | 52 | 15 | 45 |
| 2" | 51 | 65 | 15 | 45 |
| 2-1/2" | 63 | 79 | 15 | 45 |
| 3" | 76 | 94 | 15 | 45 |
| 4" | 102 | 120 | 15 | 45 |
| 5" | 127 | 150 | 15 | 45 |
| 6" | 152 | 176 | 15 | 45 |
| 8" | 203 | 228 | 10 | 45 |
| 10" | 254 | 280 | 10 | 45 |
| 12" | 304 | 333 | 10 | 45 |

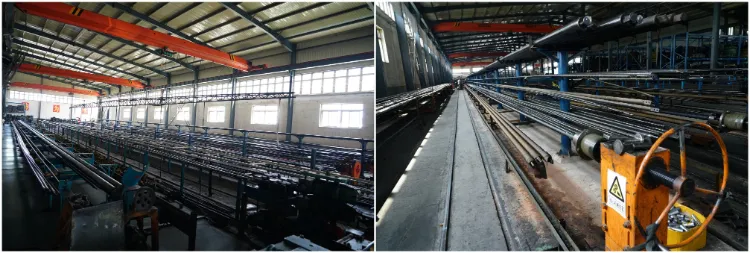

Factory Show

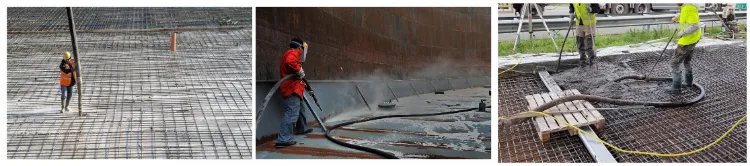

Application
Our Company
Qingdao Kingdaflex Industrial Co., Ltd is a reliable manufacturer and exporter of hydraulic hose and industrial
hose inChina for more than 15 years. Since the establishment, we have controlled and inspected raw materials
strictly to ensurethe quality. Meanwhile, we are continuing to refine our manufacturing and processing systems to
achieve customers' requirements.
Our all the products are produced according to SAE standard, DIN standard, Gost standard.
Hydraulic Hose including:
R1AT/1SN, R2AT/2SN, 4SP/4SH/R12, R3/R6, R7/R8, R13/R15 etc.
Industrial Hose including:
Air/Water Hose, Oil/Fuel Hose, Welding Hose, EPDM Hose, Suction & Discharge Hose, Sandblast Hose, A/C Hose,
Layflat Hose,Fire Sleeve, Concrete Hose, Slurry Hose etc.
Hope we can become one of your supplier in China. With us your money is in safe, your business is in safe! Welcome
customers to visit us!
