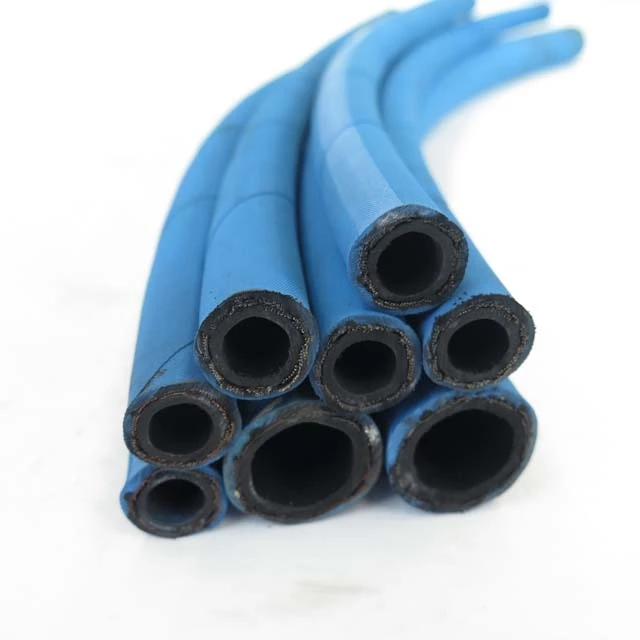

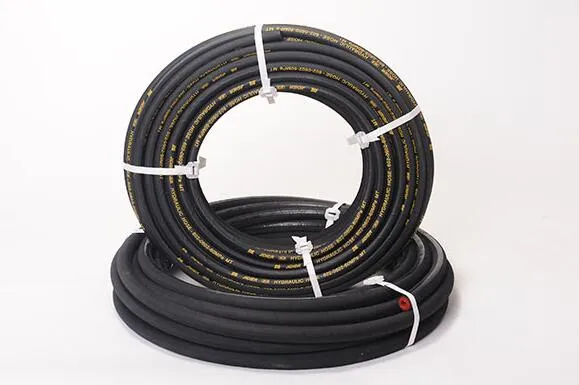

SAE DIN Standard Braid Colorful Heat Resistant Oil Pipe Fuel Hose
Our main products: High pressure hydraulic hose, steel wire braid hose, steel wire spiral hose, Fabric braid hose, steam hose, sandblasting hose, Industrial and auto hose, special function hose, steel wire frame (suction) hose, metal hoseand assembly, etc. Kind of rubber products. We can customize r......
Send Inquiry
Product Description
KEY PERFORMANCE: EN/DIN and new SAE rated working pressures
Appearance: Wrap( I.D less than 25.4mm smooth cover)

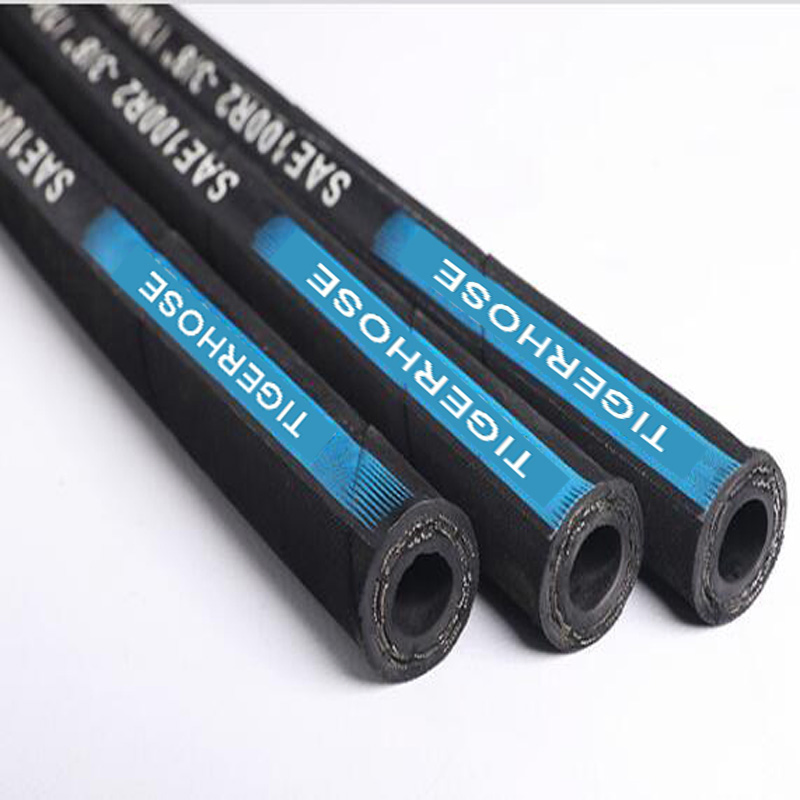

Branding: Printing and indelible branding with embossed technology
Colour: Black, red, blue, yellow, green, gray
Continuous service temperature range: -40°f / +212°f; -40°c / +100°c
Max operating temperature: 250°f 121°c
Insert: Shf-type
Tube: Oil resistant synthetic rubber

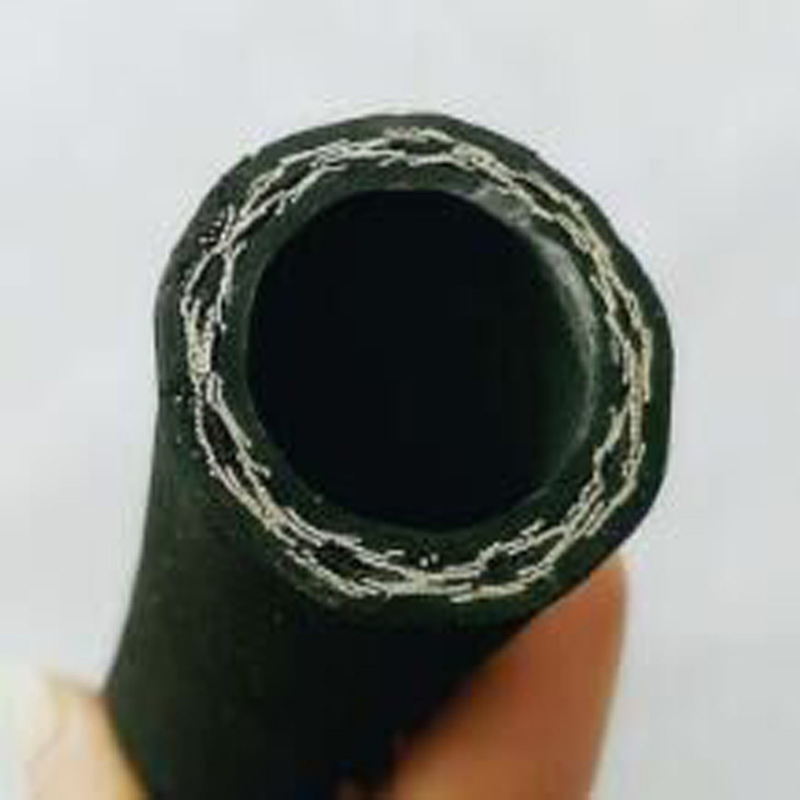

Reinforcement: Two high tensile steel braids
Cover: Environment resistant synthetic rubber
Applicable specs: EN 853 2SN - SAE 100 R2AT - ISO 1436-1 2SN/R2AT
APPLICATIONS & FLUIDS
Hydraulics: Medium-high pressure lines
Mineral oils, vegetable and rape seed oils, glycol and polyglycol based oils, synthetic ester based oils, oils in aqueous emulsion, water.
| Model no. | HOSE I.D | R.O.D | O.D | MAX W.P | MIN B.P | MIN B.R | W.T | ||||
| DN | dash | inch | mm | mm | bar | psi | bar | psi | mm | Kg/m | |
| WB 2SN 5 | 5 | -3 | 3/16" | 11,3 | 11,3 | 415 | 6010 | 1650 | 23920 | 89 | 0.32 |
| WB 2SN 6 | 6 | -4 | 1/4" | 12,7 | 14,7 | 400 | 5800 | 1600 | 23200 | 100 | 0.36 |
| WB 2SN 8 | 8 | -5 | 5/16" | 14,3 | 16,3 | 350 | 5070 | 1400 | 20300 | 114 | 0.40 |
| WB 2SN 10 | 10 | -6 | 3/8" | 16,7 | 18,7 | 330 | 4780 | 1320 | 19140 | 127 | 0.51 |
| WB 2SN 12 | 12 | -8 | 1/2" | 19,8 | 21,8 | 275 | 3980 | 1100 | 15950 | 178 | 0.62 |
| WB 2SN 16 | 16 | -10 | 5/8" | 23,0 | 25,0 | 250 | 3620 | 1000 | 14500 | 200 | 0.72 |
| WB 2SN 19 | 19 | -12 | 3/4" | 27,0 | 29,0 | 215 | 3110 | 860 | 12470 | 240 | 0.96 |
| WB 2SN 25 | 25 | -16 | 1" | 34,8 | 36,8 | 165 | 2390 | 650 | 9420 | 300 | 1.32 |
| WB 2SN 31 | 31 | -20 | 1.1/4" | 44,3 | 47,0 | 125 | 1810 | 500 | 7250 | 419 | 1.97 |
| WB 2SN 38 | 38 | -24 | 1.1/2" | 50,7 | 53,4 | 90 | 1300 | 360 | 5220 | 500 | 2.27 |
| WB 2SN 51 | 51 | -32 | 2" | 63,5 | 66,2 | 80 | 1160 | 320 | 4640 | 630 | 3.12 |
Exclusive Advantage:

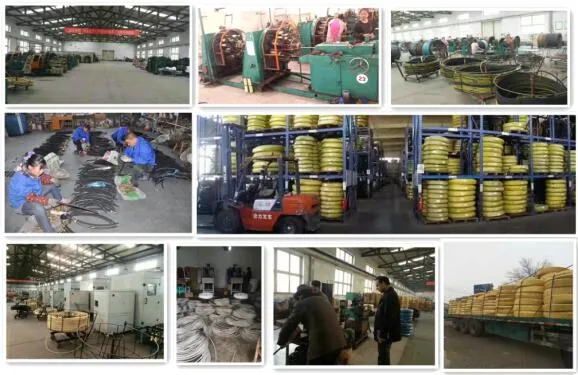

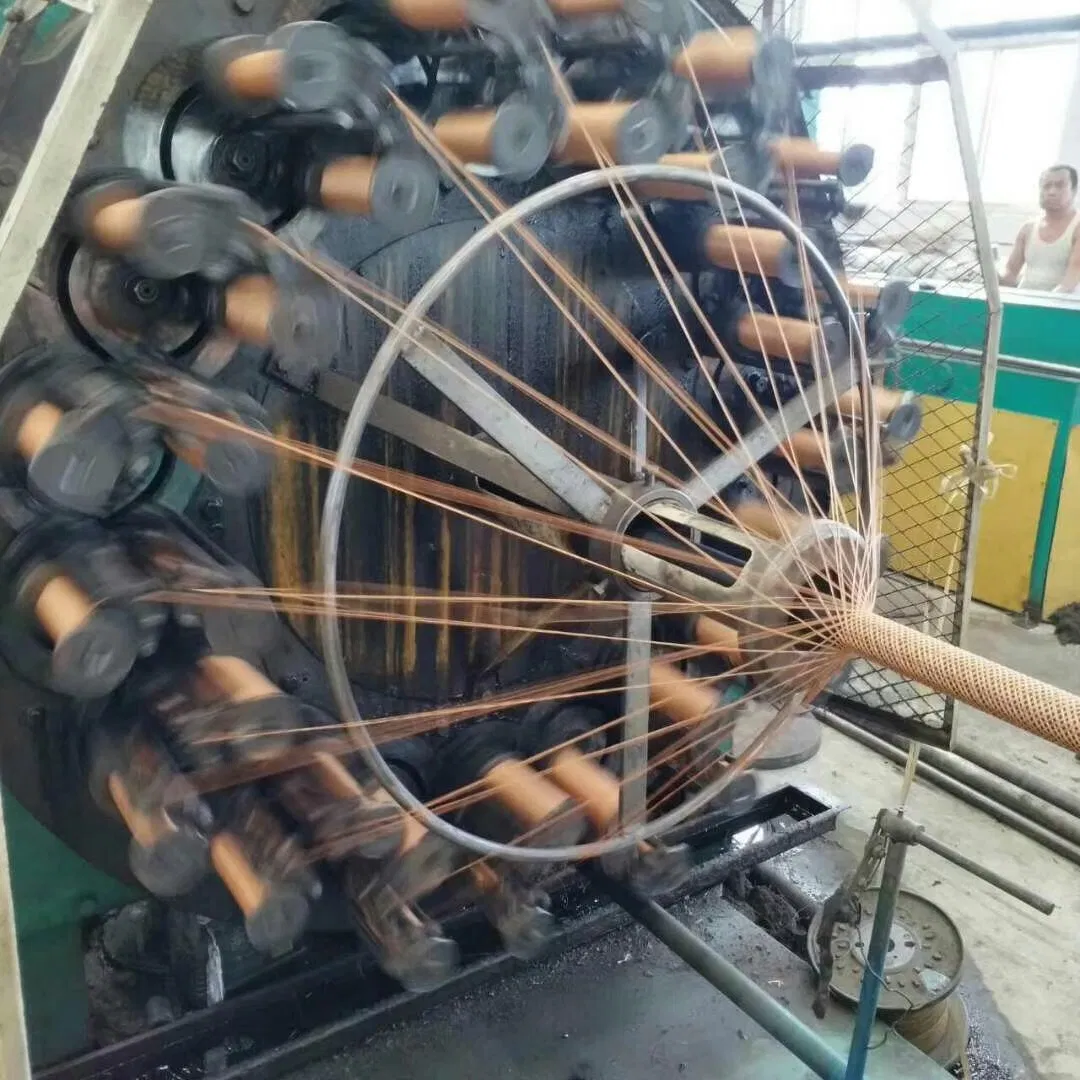

Our factory:
≡ FAQ
Q: Do you produce smooth or cloth wrapped cover?
A: Yes, we can produce both cover, which depends on customer's request.
Q: Can you produce product with my own brand?
A: Yes, OEM or ODM is warmly welcome by our company. Hope we both parties will benefit a lot through the cooperation.
Q:Could we get free samples?
A: Yes. We can provide the free sample for you
Q: Does your product have different color hose?
A: Yes, we currently provide black, grey, red, blue and yellow.
Q:Could you crimp hose?
A: Yes, we can crimp hose assembly for our customers
Q: How long does my order take to be delivered?
A: It usually takes 5 to 30 days, which generally depends on the quantity of your order and our storage.
